Continuous Duty OBA System 200psi
Air and Pneumatic Delivery Systems Constant Duty OBA parts by OBA

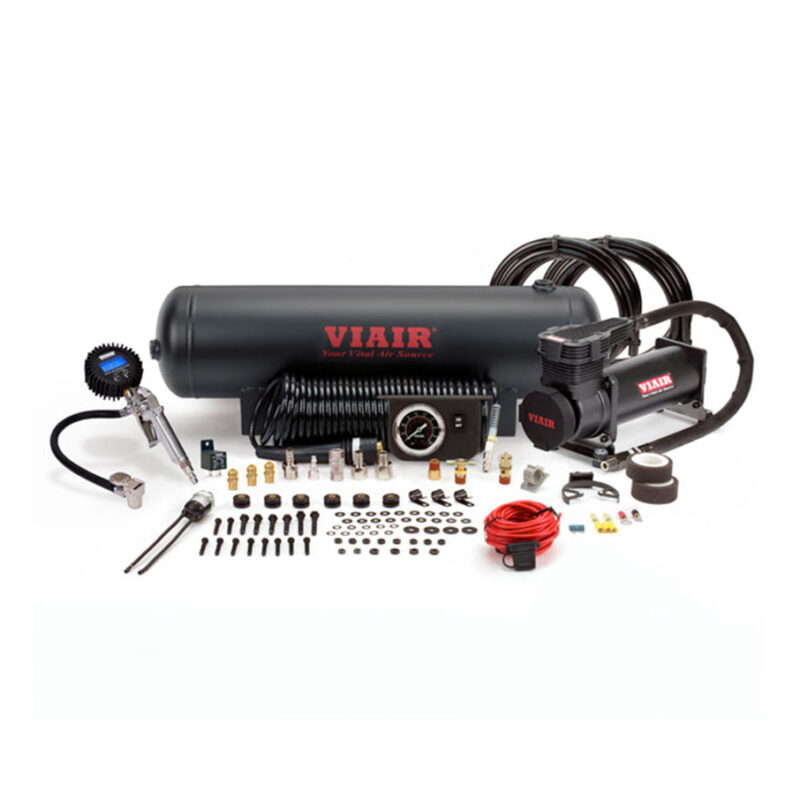

VIAIR’s Continous Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 485C CE compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
| FEATURES |
| – 2.5 Gallon VIAIR Air Tank (200 PSI) |
| – 485C Stealth Black VIAIR Compressor w/ Thermal Overload Protector |
| – Digital Tire Inflation Gun with 180 PSI Gauge |
| – 30ft. Inside Braided Black Coil Hose with Quick Connects |
| – 1/4″ NPT Quick Connect Stud (F) |
| – 1/4″ NPT Quick Connect Coupler (F) |
| – Dash Panel Gauge with ON/OFF Switch |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – Reducer 1/8″ NPT (F) to 1/4″ NPT (M) |
| – Reducer 3/8″ NPT (F) to 1/4″ NPT (M) |
| – 1/4″ NPT 250 PSI Safety Valve |
| – 1/4″ NPT Drain Cock |
| – (3) 1/4″ NPT Compression Fittings |
| – 4″ Strip of Grommet Material |
| – 20ft. 12-Gauge Wire with Inline Fuse Holder |
| – Electrical Connections |
| – Accessory Airline |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 200 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Combined Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.63″L x 4.1″W x 6.44″H |
| – Net Weight: 11.10 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
2.24 |
12 |
0 |
70.0 |
12 |
| 10 |
1.84 |
14 |
1.0 |
51.0 |
15 |
| 20 |
1.75 |
16 |
2.0 |
47.0 |
16 |
| 30 |
1.67 |
17 |
3.0 |
44.0 |
18 |
| 40 |
1.61 |
18 |
4.0 |
41.0 |
20 |
| 50 |
1.54 |
19 |
5.0 |
38.0 |
21 |
| 60 |
1.47 |
20 |
6.0 |
35.0 |
21 |
| 70 |
1.42 |
21 |
7.0 |
32.0 |
22 |
| 80 |
1.36 |
21 |
8.0 |
29.0 |
22 |
| 90 |
1.30 |
22 |
9.0 |
27.0 |
22 |
| 100 |
1.23 |
22 |
10.0 |
25.0 |
23 |
| 110 |
1.17 |
22 |
11.0 |
22.0 |
22 |
| 120 |
1.11 |
22 |
12.0 |
21.0 |
21 |
| 130 |
1.06 |
22 |
13.0 |
21.0 |
21 |
| 140 |
1.01 |
23 |
13.8 |
21.0 |
21 |
| 150 |
0.97 |
22 |
|
|
|
| 160 |
0.92 |
22 |
|
|
|
| 170 |
0.88 |
22 |
|
|
|
| 180 |
0.84 |
21 |
|
|
|
| 190 |
0.77 |
21 |
|
|
|
| 200 |
0.73 |
21 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 15 sec. (± 05 sec.) |
OE Reference: 20002
SKU: 530010013
