Heavy Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Heavy Duty OBA parts by OBA

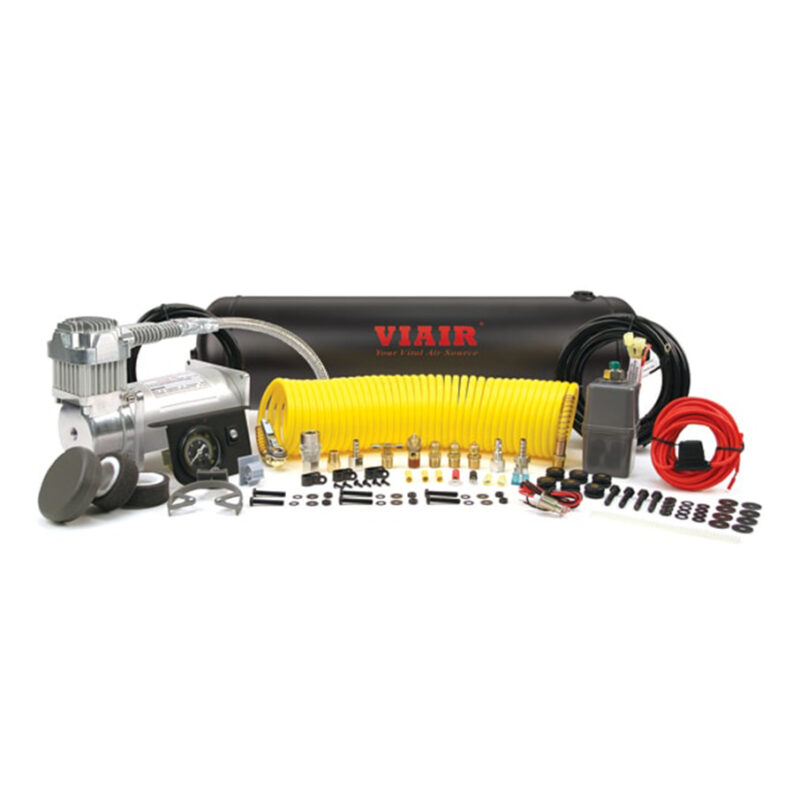

VIAIRโs Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box.
Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8โณ is 10 ~ 11 ft. lbs. Recommended torque for 1/4โณ and 3/8โณ is 12 ~ 15 ft. lbs.
FEATURES |
โ 2.5 Gallon VIAIR Air Tank |
โ 400C VIAIR Compressor w/Thermal Overload Protector |
โ 35ft. Coil Hose with Tire Chuck |
โ 1/4โณ Quick Connect Stud (F) |
โ 1/4โณ Quick Connect Coupler (F) |
โ Dash Panel Gauge with ON/OFF Switch |
โ Pressure Switch with Relay (110 PSI on, 145 PSI off) |
โ Reducer: 1/8โณ (F) to 1/4โณ (M) |
โ 1/4โณ 175 PSI Safety Valve |
โ 1/4โณ Drain Cock |
โ (3) 1/4โณ Compression Fittings |
โ 20ft. 12-Gauge Wire with Inline Fuse Holder |
โ 4โณ Strip of Continuous Grommet Material |
โ Accessory Airline |
โ Electrical Connections |
SPECIFICATIONS |
โ 12-Volt |
โ Permanent Magnetic Motor |
โ Duty Cycle: 33% @ 100 PSI |
โ Max. Working Pressure: 150 PSI |
โ 1/4โณ Quick Connect Coupler (F) |
โ Max. Amp Draw: 28 Amps |
โ Ingress Protection Rating: IP67 |
โ |
โ |
โ |
โ |
โ |
โ |
โ |
โ |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
PSI |
CFM |
A |
BAR |
LPM |
A |
0 |
2.62 |
16 |
0 |
74 |
16 |
10 |
2.39 |
18 |
1.0 |
65.0 |
20 |
20 |
2.21 |
20 |
2.0 |
60.0 |
23 |
30 |
2.11 |
22 |
3.0 |
56.0 |
25 |
40 |
2.01 |
24 |
4.0 |
53.0 |
27 |
50 |
1.93 |
25 |
5.0 |
49.0 |
28 |
60 |
1.84 |
26 |
6.0 |
46.0 |
28 |
70 |
1.73 |
27 |
7.0 |
42.0 |
28 |
80 |
1.65 |
27 |
8.0 |
38.0 |
28 |
90 |
1.52 |
27 |
9.0 |
35.0 |
27 |
100 |
1.45 |
27 |
10.0 |
31.0 |
27 |
110 |
1.35 |
27 |
|
|
|
120 |
1.26 |
27 |
|
|
|
130 |
1.19 |
27 |
|
|
|
140 |
1.08 |
27 |
|
|
|
150 |
1.01 |
26 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
2.5 GALLON TANK |
FILL RATE |
0 to 145 PSI |
2 min. 20 sec. (ยฑ 05 sec.) |
110 to 145 PSI |
48 sec. (ยฑ 03 sec.) |
33โณ X 12.5โณ |
FILL RATE |
0 to 30 PSI |
4 min. 20 sec. (ยฑ 10 sec.) |
15 to 30 PSI |
2 min. 05 sec. (ยฑ 05 sec.) |
35โณ X 12.5โณ |
FILL RATE |
0 to 30 PSI |
5 min. 20 sec. (ยฑ 15 sec.) |
15 to 30 PSI |
2 min. 45 sec. (ยฑ 10 sec.) |
RV TIRES 275/80R22.5 |
FILL RATE |
80 to 90 PSI |
30 sec. (ยฑ 05 sec.) |
90 to 100 PSI |
3 min. 50 sec. (ยฑ 10 sec.) |
110 to 130 PSI |
4 min. 37 sec. (ยฑ 15 sec.) |
OE Reference: 10005
SKU: 530010008
