Description
380C 200 PSI / 2.54 CFM – Chrome
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA

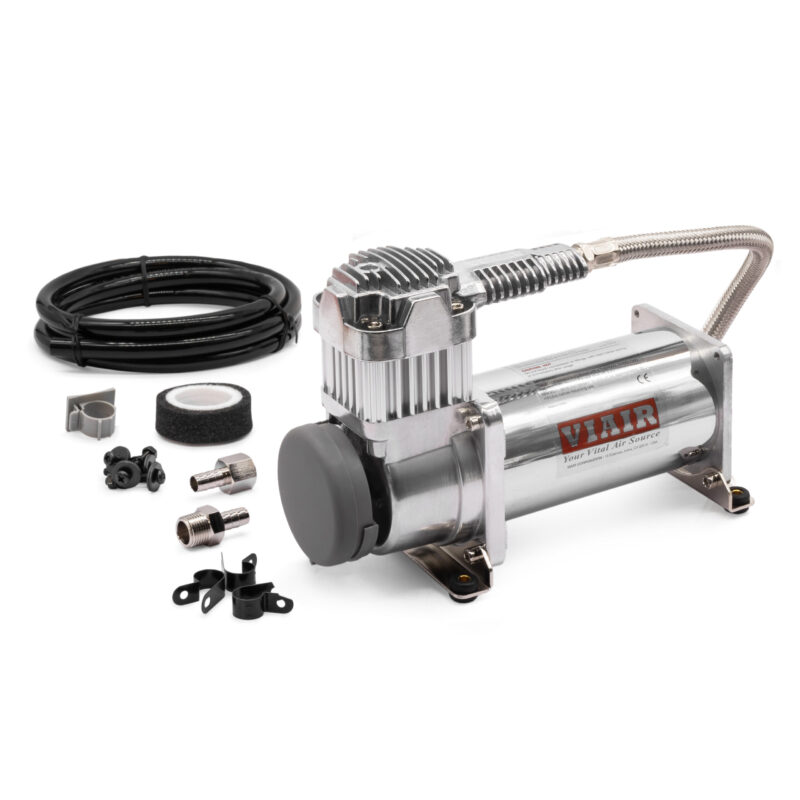

380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4″ stainless steel braided leader hose with 1/4″ NPT inline check valve and insulated wiring.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
| FEATURES |
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |

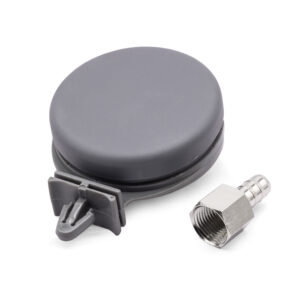

| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9″L x 4″W x 6.75″H |
| – Net Weight: 8.75 lbs. |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.58 |
12 |
0 |
44.7 |
12 |
| 10 |
1.45 |
13 |
1.0 |
38.1 |
13 |
| 20 |
1.22 |
14 |
2.0 |
33.3 |
15 |
| 30 |
1.17 |
15 |
3.0 |
30.6 |
16 |
| 40 |
1.09 |
16 |
4.0 |
29.1 |
17 |
| 50 |
1.06 |
17 |
5.0 |
27.1 |
18 |
| 60 |
1.02 |
17 |
6.0 |
25.3 |
19 |
| 70 |
0.97 |
18 |
7.0 |
24.0 |
20 |
| 80 |
0.92 |
18 |
8.0 |
22.4 |
21 |
| 90 |
0.88 |
19 |
9.0 |
21.0 |
23 |
| 100 |
0.85 |
20 |
10.0 |
19.5 |
21 |
| 110 |
0.81 |
21 |
11.0 |
18.2 |
20 |
| 120 |
0.78 |
22 |
12.0 |
16.7 |
19 |
| 130 |
0.74 |
23 |
13.0 |
15.2 |
19 |
| 140 |
0.71 |
21 |
14.0 |
13.5 |
18 |
| 150 |
0.67 |
20 |
|
|
|
| 160 |
0.64 |
20 |
|
|
|
| 170 |
0.60 |
19 |
|
|
|
| 180 |
0.57 |
19 |
|
|
|
| 190 |
0.53 |
19 |
|
|
|
| 200 |
0.49 |
18 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
3 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI |
1 min. 10 sec. (± 05 sec.) |
| 0 to 200 PSI |
6 min. 05 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 40 sec. (± 05 sec.) |
| 5.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
7 min. 20 sec. (± 10 sec.) |
| 110 to 145 PSI |
2 min. 25 sec. (± 05 sec.) |
| 0 to 200 PSI |
13 min. 25 sec. (± 15 sec.) |
| 165 to 200 PSI |
3 min. 39 sec. (± 10 sec.) |
OE Reference: 38003
SKU: 510010003
380C 200 PSI / 2.54 CFM – Chrome
£175.85inc 20% VAT
380C 200 PSI / 2.54 CFM – Chrome
OE Code : 38003
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Compressors (Singles), Max Working Pressure 200PSI
Colour : Chrome
Description
380C 200 PSI / 2.54 CFM – Chrome
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4″ stainless steel braided leader hose with 1/4″ NPT inline check valve and insulated wiring.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
* Supply Voltage: 13.8 Volts
FILL RATES
OE Reference: 38003
SKU: 510010003
Additional information
38003
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Compressors (Singles), Max Working Pressure 200PSI
Chrome
