Description
425C Gen. 2 Dual Value Pack 175 PSI / 4.80 CFM – Platinum
Air and Pneumatic Delivery Systems 425C Model Range parts by OBA
VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 4.80 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.

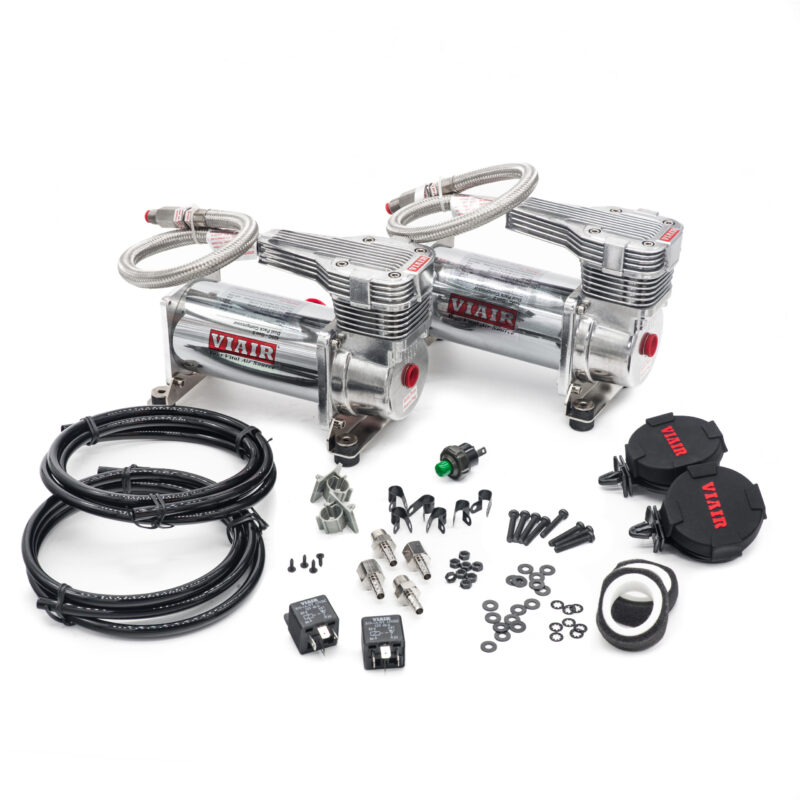

The 425C Dual Performance Value Pack features two 12V 425C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
Specification
– Permanent Magnetic Motor
– Duty Cycle: 50% @ 100 PSI
– Max. Working Pressure: 175 PSI
– Max. Air Tank: 5.0 Gallon
– Min. Ambient Temp: -40° F
– Max. Ambient Temp: 158° F
– Net Weight: 11.1 lbs
Dimensions: 9.25″L x 4.14″W x 6.59″H
Fill Rates
2.5 Gallon Tank
0 to 175 PSI-1 min. 40 sec. (± 10 sec.)
140-175 PSI-28 sec. (± 03 sec.)
5 Gallon Tank
0 to 175 PSI-3 min. 06 sec. (± 10 sec.)
145-175 PSI-57 sec. (± 05 sec.)
OE Reference: 42513-1
SKU: 510020007
425C Gen. 2 Dual Value Pack 175 PSI / 4.80 CFM – Platinum
$459.52
VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 4.80 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.
OE Code : 42513-1
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Compressors (Dual Pack), Max Working Pressure 175PSI
Colour : Platinum
Description
425C Gen. 2 Dual Value Pack 175 PSI / 4.80 CFM – Platinum
Air and Pneumatic Delivery Systems 425C Model Range parts by OBA
VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 4.80 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.
The 425C Dual Performance Value Pack features two 12V 425C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
Specification
– Permanent Magnetic Motor
– Duty Cycle: 50% @ 100 PSI
– Max. Working Pressure: 175 PSI
– Max. Air Tank: 5.0 Gallon
– Min. Ambient Temp: -40° F
– Max. Ambient Temp: 158° F
– Net Weight: 11.1 lbs
Dimensions: 9.25″L x 4.14″W x 6.59″H
Fill Rates
2.5 Gallon Tank
0 to 175 PSI-1 min. 40 sec. (± 10 sec.)
140-175 PSI-28 sec. (± 03 sec.)
5 Gallon Tank
0 to 175 PSI-3 min. 06 sec. (± 10 sec.)
145-175 PSI-57 sec. (± 05 sec.)
OE Reference: 42513-1
SKU: 510020007
Additional information
42513-1
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Compressors (Dual Pack), Max Working Pressure 175PSI
Platinum
