Description
485C Gen. 2 200 PSI / 3.82 CFM – Platinum
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.
The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
| FEATURES |
| – Thermal Overload Protector |

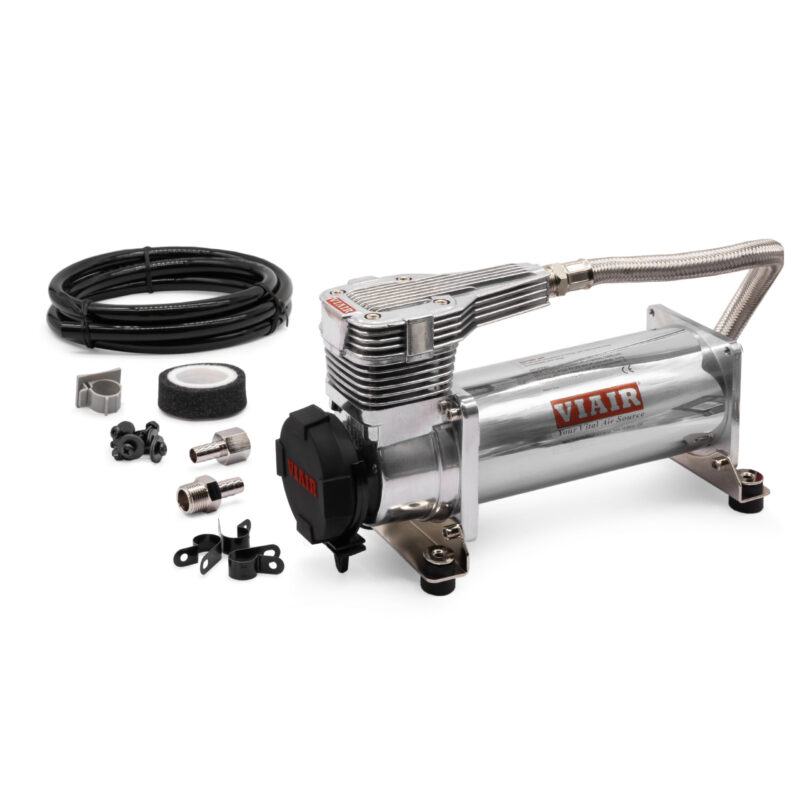

| – 485C (Platinum or Stealth Black) Compressor |
| – Air Filter Assembly |
| – VIAIR Removable Filter Cover |
| – Replacement Air Filter Elements |
| – Remote Mount Filter Assembly |
| – Leader Hose Clip |
| – Air Line Clip with Included Hardware |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 200 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Combined Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.63″L x 4.1″W x 6.44″H |
| – Net Weight: 11.10 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS |
| – 2.5 Gallon Tank (P/N 91028) |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
2.24 |
12 |
0 |
70.0 |
12 |
| 10 |
1.84 |
14 |
1.0 |
51.0 |
15 |
| 20 |
1.75 |
16 |
2.0 |
47.0 |
16 |
| 30 |
1.67 |
17 |
3.0 |
44.0 |
18 |
| 40 |
1.61 |
18 |
4.0 |
41.0 |
20 |
| 50 |
1.54 |
19 |
5.0 |
38.0 |
21 |
| 60 |
1.47 |
20 |
6.0 |
35.0 |
21 |
| 70 |
1.42 |
21 |
7.0 |
32.0 |
22 |
| 80 |
1.36 |
21 |
8.0 |
29.0 |
22 |
| 90 |
1.30 |
22 |
9.0 |
27.0 |
22 |
| 100 |
1.23 |
22 |
10.0 |
25.0 |
23 |
| 110 |
1.17 |
22 |
11.0 |
22.0 |
22 |
| 120 |
1.11 |
22 |
12.0 |
21.0 |
21 |
| 130 |
1.06 |
22 |
13.0 |
21.0 |
21 |
| 140 |
1.01 |
23 |
13.8 |
21.0 |
21 |
| 150 |
0.97 |
22 |
|
|
|
| 160 |
0.92 |
22 |
|
|
|
| 170 |
0.88 |
22 |
|
|
|
| 180 |
0.84 |
21 |
|
|
|
| 190 |
0.77 |
21 |
|
|
|
| 200 |
0.73 |
21 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 15 sec. (± 05 sec.) |
| 5.0 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
9 min. 45 sec. (± 15 sec.) |
| 165 to 200 PSI |
2 min. 25 sec. (± 05 sec.) |
OE Reference: 48532
SKU: 510010016
485C Gen. 2 200 PSI / 3.82 CFM – Platinum
£275.40inc 20% VAT
485C Gen. 2 200 PSI / 3.82 CFM – Platinum
OE Code : 48532
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Compressors (Singles), Max Working Pressure 200PSI
Colour : Platinum
Description
485C Gen. 2 200 PSI / 3.82 CFM – Platinum
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.
The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel leader hose and an inline check valve.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
* Supply Voltage: 13.8 Volts
FILL RATES
OE Reference: 48532
SKU: 510010016
Additional information
48532
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Compressors (Singles), Max Working Pressure 200PSI
Platinum
