Description

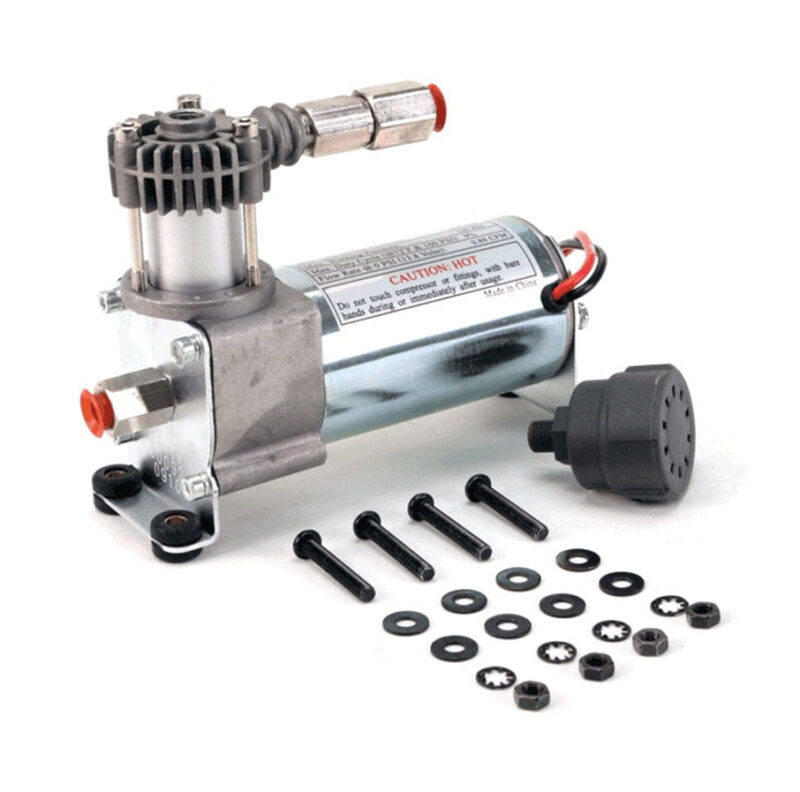

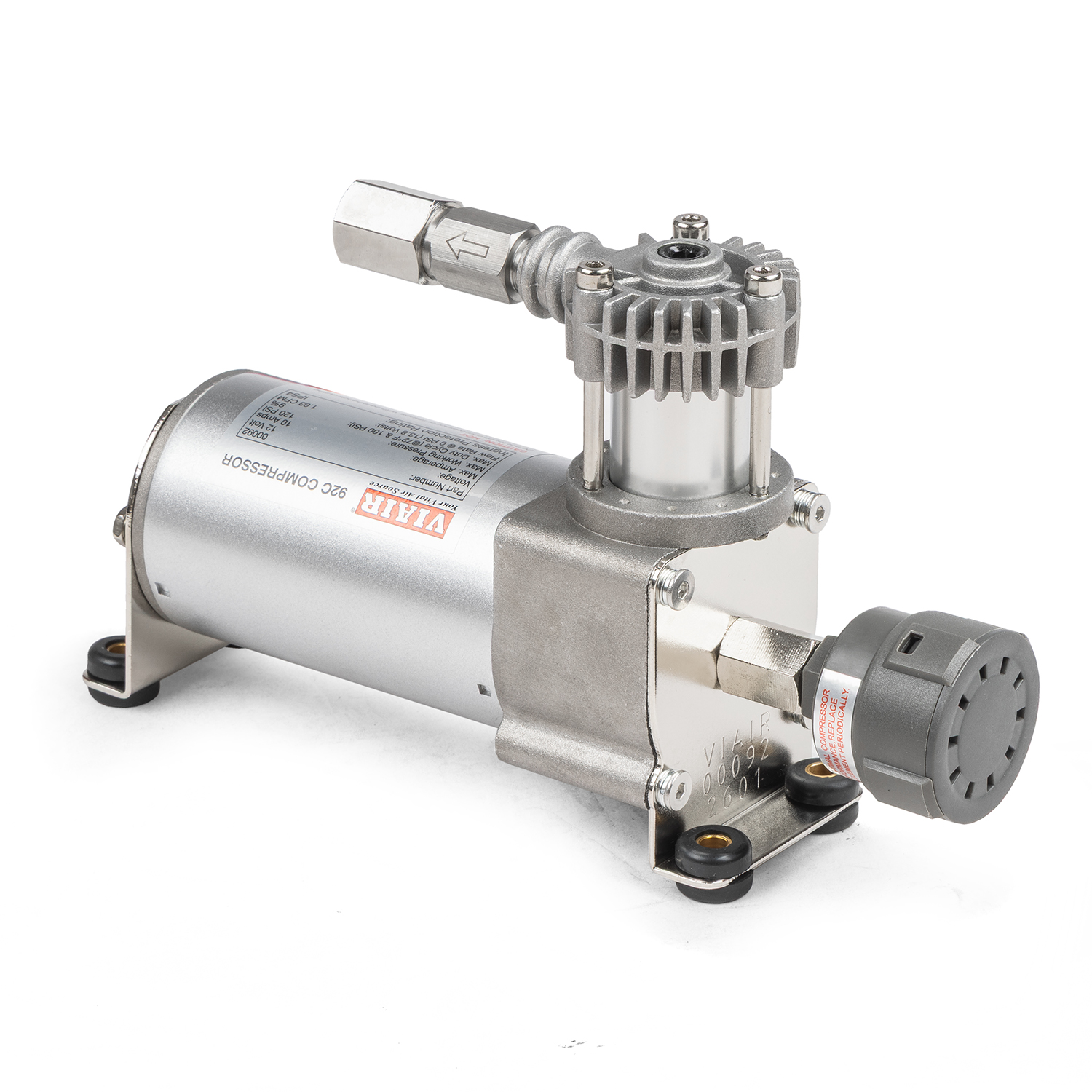

92C Compressor Kit w/ External Check Valve / Intake Filter (12V, 9% Duty, Sealed)
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
Remote Mount Inlet Air Filter Mounting Instruction
1. Place Remote Mounting Bracket onto Inlet Air Filter
assembly and line up attachment holes.
2. Fasten Bracket to Inlet Air Filter with 2 screws provided.
3. Screw 3/8″ NPT (F) x 1/2″ Tube Fitting onto Inlet Air Filter, hand tighten. (No thread tape needed)
4. Locate appropriate area where Remote Inlet Filter is to be
installed. Keep in mind that location should be dry and away
from heat source, and that the air inlet slots on the inlet air
filter are free from blockage and not facing upward.
5. Drill 3/8″ mounting hole. Push Remote Filter Bracket pin
into hole.
6. Screw 3/8″ NPT (M) x 1/2″ Tube Fitting onto compressor’s
air inlet port, tighten with wrench. (No thread tape needed)
7. Attach provided 1/2″ air line to barbed tube fitting of air
inlet port of compressor.
8. Route air line to Remote Inlet Air Filter, measure and cut squarely
to appropriate length, and attach to Remote Inlet Air Filter.
| CHOOSE YOUR REMOTE INLET AIR FILTER |
| 92C Compressor |
N/A |
| 100C Compressor |
P/N 92621 |
| 275C Compressor |
P/N 92621 |
| 280C Compressor |
N/A |
| 325C Compressor |
P/N 92622 |
| 330C Compressor |
P/N 92622 |
| 350C Compressor |
P/N 92622 |
| 380C Compressor |
P/N 92622 |
| 400C Compressor |
P/N 92622 |
| 400H Compressor |
P/N 92622 |
| 420C Compressor |
P/N 92629 |
| 444C Compressor |
P/N 92622 |
| 450C Compressor |
P/N 92622 |
| 450H Compressor |
P/N 92622 |
| 460C Compressor |
P/N 92629 |
| 480C Compressor |
P/N 92629 |
OE Reference: 92
SKU: 510010019
92C Compressor Kit w/ External Check Valve / Intake Filter (12V, 9% Duty, Sealed)
£96.85inc 20% VAT
OE Code : 92
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Compressors (Singles), Max Working Pressure 120PSI
Colour : Silver
Description
92C Compressor Kit w/ External Check Valve / Intake Filter (12V, 9% Duty, Sealed)
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
Remote Mount Inlet Air Filter Mounting Instruction
assembly and line up attachment holes.
2. Fasten Bracket to Inlet Air Filter with 2 screws provided.
3. Screw 3/8″ NPT (F) x 1/2″ Tube Fitting onto Inlet Air Filter, hand tighten. (No thread tape needed)
4. Locate appropriate area where Remote Inlet Filter is to be
installed. Keep in mind that location should be dry and away
from heat source, and that the air inlet slots on the inlet air
filter are free from blockage and not facing upward.
5. Drill 3/8″ mounting hole. Push Remote Filter Bracket pin
into hole.
6. Screw 3/8″ NPT (M) x 1/2″ Tube Fitting onto compressor’s
air inlet port, tighten with wrench. (No thread tape needed)
7. Attach provided 1/2″ air line to barbed tube fitting of air
inlet port of compressor.
8. Route air line to Remote Inlet Air Filter, measure and cut squarely
to appropriate length, and attach to Remote Inlet Air Filter.
OE Reference: 92
SKU: 510010019
Additional information
92
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Compressors (Singles), Max Working Pressure 120PSI
Silver
