Viair 95C Compressor Kit w/ External Check Valve / Omega Bracket (24V, 9% Duty, Sealed)
Air and Pneumatic Delivery Systems 24V Compressors parts by OBA

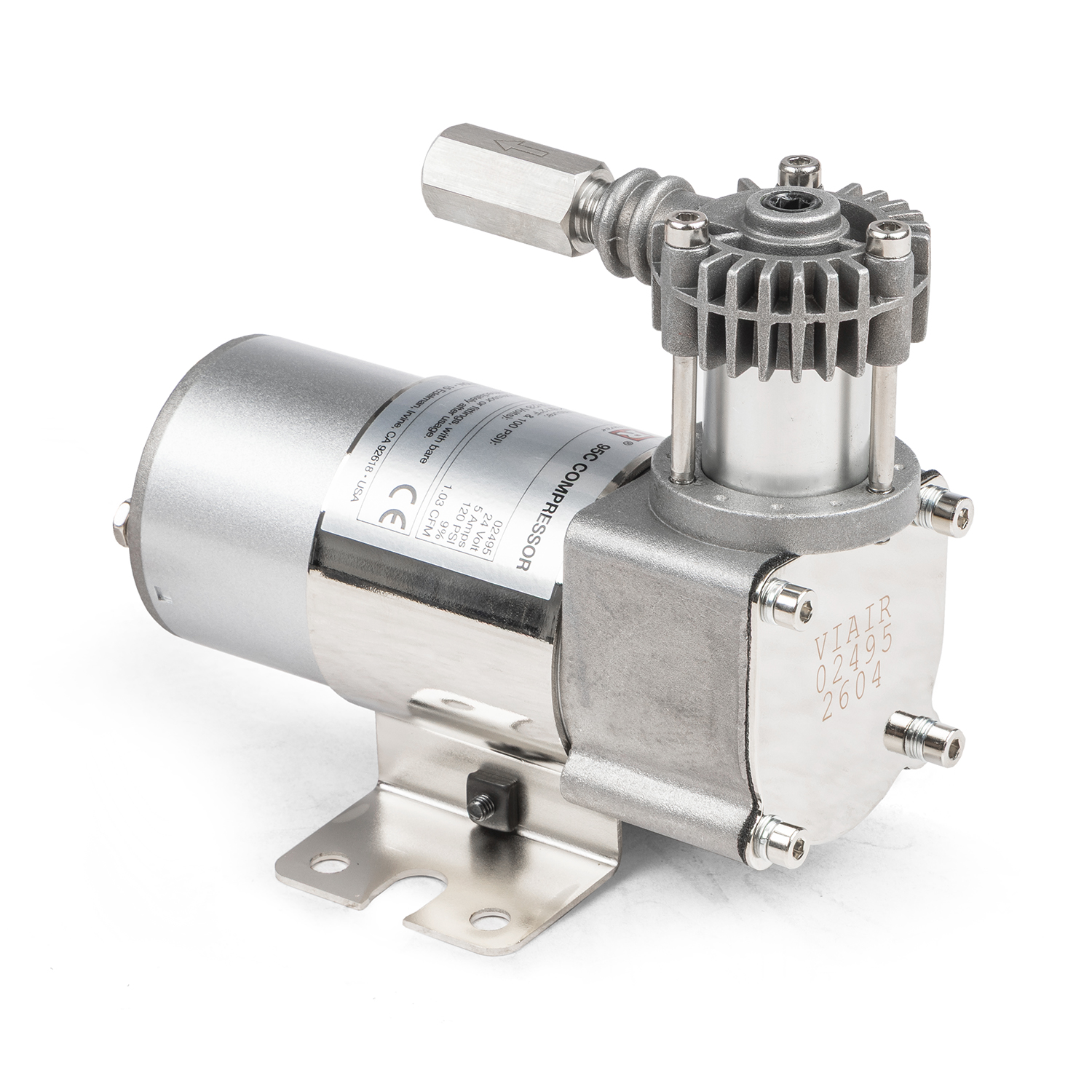

VIAIR’s 24 volt 95C compressor kit is a light duty solution for smaller air applications. It is meant to fill air tanks 1.0 gallon or less. This oil-less compressor comes with an external check valve, omega mounting bracket, vibration isolators and hardware. This compressor draws air in through porous gaskets and requires no air filter. Compressor is rated to 28.0 volts from a charging car battery.
| FEATURES |
| – Omega Bracket |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Installation Instructions |
| – |
| – |
| – |
| – |
| – |
| SPECIFICATIONS |
| – 12-Volt / 24-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 9% @ 100 PSI |
| – Max. Working Pressure: 120 PSI |
| – Max. Air Tank Size: 1.0 Gallon |
| – Max. 12V Amp Draw: 10 Amps |
| – Max. 24V Amp Draw: 5 Amps |
| – Ingress Protection Rating: IP54 |
| – Dimensions: 5.4″L x 3.1″W x 4.6″H |
| – Net Weight: 2.55 lbs. |
* For 12V Only.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| 12-VOLT COMPRESSOR |
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.03 |
7 |
0 |
29.0 |
7 |
| 10 |
0.71 |
8 |
1.0 |
19.0 |
8 |
| 20 |
0.67 |
8 |
2.0 |
18.0 |
9 |
| 30 |
0.64 |
9 |
3.0 |
16.5 |
9 |
| 40 |
0.60 |
9 |
4.0 |
15.0 |
10 |
| 50 |
0.57 |
9 |
5.0 |
13.5 |
10 |
| 60 |
0.53 |
10 |
6.0 |
12.5 |
10 |
| 70 |
0.48 |
10 |
7.0 |
11.0 |
10 |
| 80 |
0.45 |
10 |
8.0 |
10.0 |
9 |
| 90 |
0.43 |
10 |
|
|
|
| 100 |
0.39 |
9 |
|
|
|
| 110 |
0.36 |
9 |
|
|
|
| 120 |
0.34 |
9 |
|
|
|
* Supply Voltage: 13.8 Volts
| 24-VOLT COMPRESSOR |
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.03 |
4 |
0 |
29.0 |
4 |
| 10 |
0.71 |
4 |
1.0 |
19.0 |
4 |
| 20 |
0.67 |
4 |
2.0 |
18.0 |
4 |
| 30 |
0.64 |
4 |
3.0 |
16.5 |
5 |
| 40 |
0.60 |
5 |
4.0 |
15.0 |
5 |
| 50 |
0.57 |
5 |
5.0 |
13.5 |
5 |
| 60 |
0.53 |
5 |
6.0 |
12.5 |
5 |
| 70 |
0.48 |
5 |
7.0 |
11.0 |
5 |
| 80 |
0.45 |
5 |
8.0 |
10.0 |
5 |
| 90 |
0.43 |
5 |
|
|
|
| 100 |
0.39 |
5 |
|
|
|
| 110 |
0.36 |
5 |
|
|
|
| 120 |
0.34 |
5 |
|
|
|
* Supply Voltage: 28.0 Volts
FILL RATES
| 12-VOLT COMPRESSOR |
| 0.5 GALLON TANK |
FILL RATE |
| 0 to 105 PSI |
1 min. 08 sec. (± 05 sec.) |
| 85 to 105 PSI |
16 sec. (± 03 sec.) |
| 0 to 120 PSI |
1 min. 23 sec. (± 05 sec.) |
| 90 to 120 PSI |
27 sec. (± 03 sec.) |
| 1.0 GALLON TANK |
FILL RATE |
| 0 to 105 PSI |
2 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI |
35 sec. (± 05 sec.) |
| 0 to 120 PSI |
3 min. 04 sec. (± 10 sec.) |
| 90 to 120 PSI |
54 sec. (± 05 sec.) |
| 24-VOLT COMPRESSOR |
| 0.5 GALLON TANK |
FILL RATE |
| 0 to 105 PSI |
1 min. 05 sec. (± 05 sec.) |
| 85 to 105 PSI |
15 sec. (± 03 sec.) |
| 0 to 120 PSI |
1 min. 20 sec. (± 05 sec.) |
| 90 to 120 PSI |
25 sec. (± 03 sec.) |
| 1.0 GALLON TANK |
FILL RATE |
| 0 to 105 PSI |
2 min. 10 sec. (± 10 sec.) |
| 85 to 105 PSI |
31 sec. (± 05 sec.) |
| 0 to 120 PSI |
2 min. 40 sec. (± 10 sec.) |
| 90 to 120 PSI |
50 sec. (± 05 sec.) |
OE Reference: 2495
SKU: 510010023
