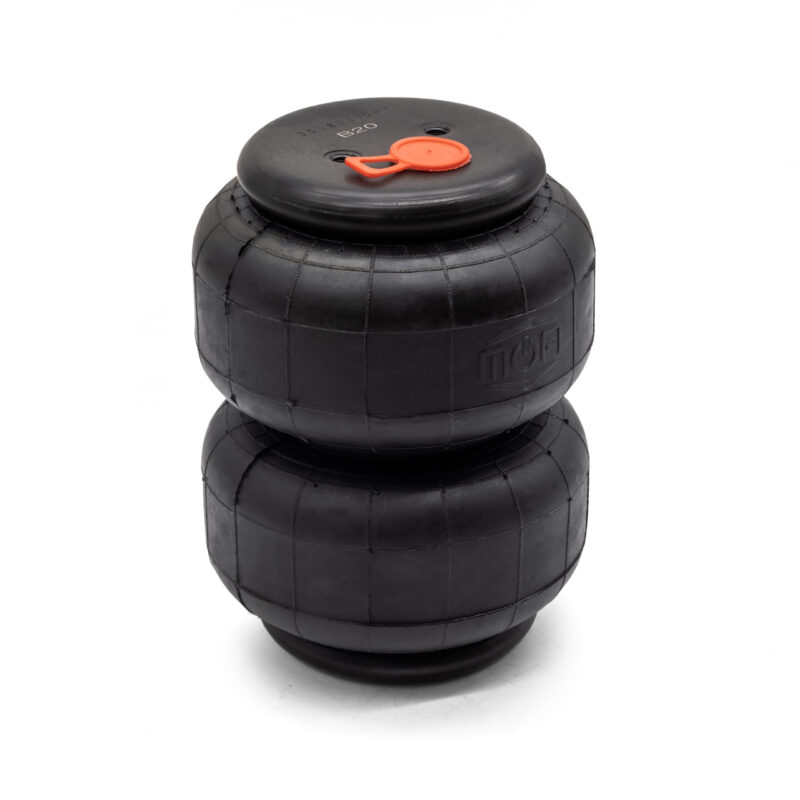

MOA AirBag B20 Dual / Twin Bellow (1/2″ Port – Extension 10.6″)
Air and Pneumatic Delivery Systems Air Bags Universal parts by OBA
The MOA B20 Air Bag, features a maximum restrained pressure exceeding all on the market still holding at 600PSI, sidewall holding at below 7″ operating pressure.
The Ultra Strong construction will maintain a narrow expansion body at all operating pressures. Webbed internal and external construction featuring a square sidewall. The rubber compound is over 4x thickness of equivalent dimension air bags. This bag is often used for A-frame custom contructions, heavy lift applications and load level.
Safe cycling upto 250PSI.
| Pressure (Bar) |
1 |
3 |
5 |
7 |
| External Diameter |
158.2mm |
162.3mm |
165.5mm |
168.5mm |
| Load (KN) |
1.604 |
4.120 |
6.720 |
9.380 |
Details:
- Maximum Extended Height: 10.6″
- Compressed Height: 2.8″
- Maximum Diameter: 7″
- Maximum Load at 100 PSI: 2,108 lbs.
- Port Size: 1/2″
- Top Fastener: 3/8″–16
- Bottom Fastener: 3/8″–16
- Mounting Hole Center: 1.75″ – Top/Center/Bottom
- Sold Individually
SKU: 550020001
