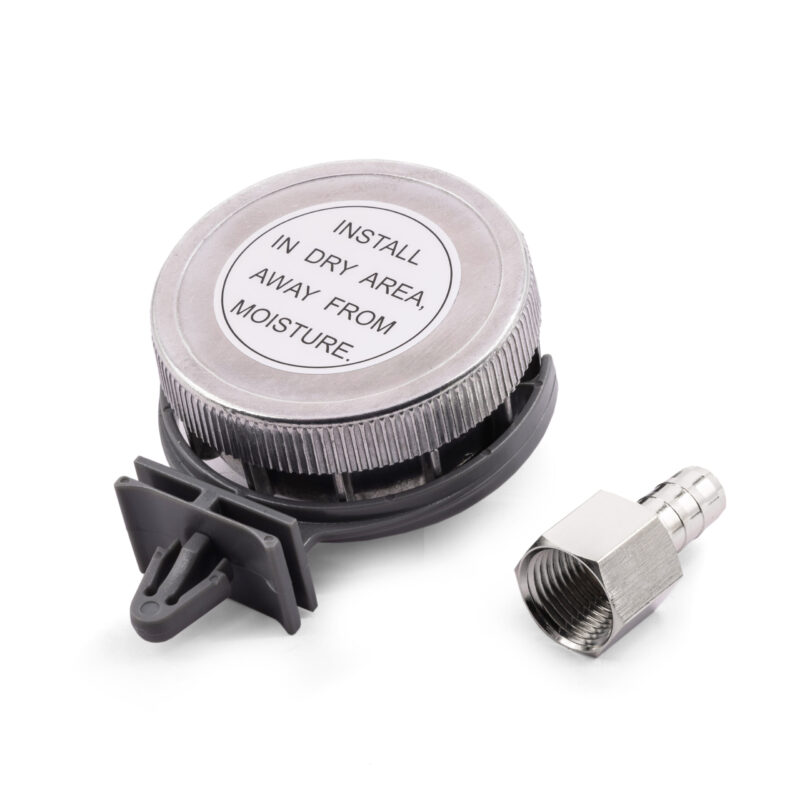

Remote Inlet Air Filter Assembly, Metal Housing (3/8″ x 1/2″ Tube Fitting, NPT)
Air and Pneumatic Delivery Systems Metal Filter Housings parts by OBA
Remote Mount Inlet Air Filter Mounting Instruction
1. Place Remote Mounting Bracket onto Inlet Air Filter
assembly and line up attachment holes.
2. Fasten Bracket to Inlet Air Filter with 2 screws provided.
3. Screw 3/8″ NPT (F) x 1/2″ Tube Fitting onto Inlet Air Filter, hand tighten. (No thread tape needed)
4. Locate appropriate area where Remote Inlet Filter is to be
installed. Keep in mind that location should be dry and away
from heat source, and that the air inlet slots on the inlet air
filter are free from blockage and not facing upward.
5. Drill 3/8″ mounting hole. Push Remote Filter Bracket pin
into hole.
6. Screw 3/8″ NPT (M) x 1/2″ Tube Fitting onto compressor’s
air inlet port, tighten with wrench. (No thread tape needed)
7. Attach provided 1/2″ air line to barbed tube fitting of air
inlet port of compressor.
8. Route air line to Remote Inlet Air Filter, measure and cut squarely
to appropriate length, and attach to Remote Inlet Air Filter.
| CHOOSE YOUR REMOTE INLET AIR FILTER |
| 92C Compressor |
N/A |
| 100C Compressor |
P/N 92621 |
| 275C Compressor |
P/N 92621 |
| 280C Compressor |
N/A |
| 325C Compressor |
P/N 92622 |
| 330C Compressor |
P/N 92622 |
| 350C Compressor |
P/N 92622 |
| 380C Compressor |
P/N 92622 |
| 400C Compressor |
P/N 92622 |
| 400H Compressor |
P/N 92622 |
| 420C Compressor |
P/N 92629 |
| 444C Compressor |
P/N 92622 |
| 450C Compressor |
P/N 92622 |
| 450H Compressor |
P/N 92622 |
| 460C Compressor |
P/N 92629 |
| 480C Compressor |
P/N 92629 |
OE Reference: 92629
SKU: 580060013
Remote Inlet Air Filter Assembly, Metal Housing (3/8″ x 1/2″ Tube Fitting, NPT)
£24.34inc 20% VAT
OE Code : 92629
Application : Car and Truck, Off Road and 4x4, RV and Motorhome, Industrial
Description
Remote Inlet Air Filter Assembly, Metal Housing (3/8″ x 1/2″ Tube Fitting, NPT)
Air and Pneumatic Delivery Systems Metal Filter Housings parts by OBA
Remote Mount Inlet Air Filter Mounting Instruction
assembly and line up attachment holes.
2. Fasten Bracket to Inlet Air Filter with 2 screws provided.
3. Screw 3/8″ NPT (F) x 1/2″ Tube Fitting onto Inlet Air Filter, hand tighten. (No thread tape needed)
4. Locate appropriate area where Remote Inlet Filter is to be
installed. Keep in mind that location should be dry and away
from heat source, and that the air inlet slots on the inlet air
filter are free from blockage and not facing upward.
5. Drill 3/8″ mounting hole. Push Remote Filter Bracket pin
into hole.
6. Screw 3/8″ NPT (M) x 1/2″ Tube Fitting onto compressor’s
air inlet port, tighten with wrench. (No thread tape needed)
7. Attach provided 1/2″ air line to barbed tube fitting of air
inlet port of compressor.
8. Route air line to Remote Inlet Air Filter, measure and cut squarely
to appropriate length, and attach to Remote Inlet Air Filter.
OE Reference: 92629
SKU: 580060013
Additional information
92629
Car and Truck, Off Road and 4×4, RV and Motorhome, Industrial
