Description

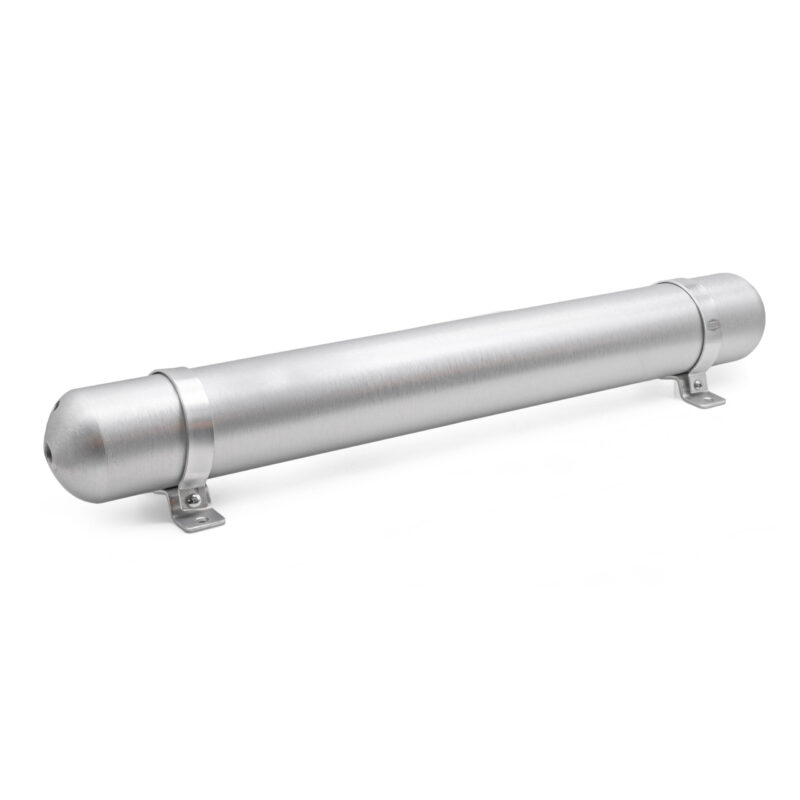

1.5 Gallon MOA Seamless Aluminium Skinny Air Tank (5x NPT Ports, 200 PSI Rated)
Air and Pneumatic Delivery Systems Aluminium Air Tanks parts by OBA
Seamless air tank technology combines beauty and function with high operating pressures. With no visual joints, flow formed threads and NPT ports revolutionising welded air tank construction.
The metal spinning process has now made it possible to manufacture these stunning tanks. The technique of closing both ends of the tube using the base material creates a true seamless tank. Following this each threaded port is created by press forming. This gies each port a long binding surface and no edge / burr or loss of material thickness
The MOA air tanks boast the highest thickest wall in the industry of 3.5mm thinnest to insure optimum lifelong efficiency.
Tank includes two strap style aluminium air tank mounts.
Aluminium Seamless Tank Spec and Range
Skinny (100mm Body Tanks)
1 Gallon
– Length: 720mm
– Diameter: 100mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.5kg
– Aluminium
1.5 Gallon
– Length: 840mm
– Diameter: 100mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.8kg
– Aluminium
Traditional (168mm Body Tanks)
1 Gallon (168mm Body)
– Length: 200mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.5kg
– Aluminium
1.5 Gallon (168mm Body)
– Length: 250mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.5kg
– Aluminium
3 Gallon (168mm Body)
– Length: 595mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 3.0kg
– Aluminium
4 Gallon (168mm Body)
– Length: 720mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 3.2kg
– Aluminium
5 Gallon (168mm Body)
– Length: 840mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 5.5kg
– Aluminium
SKU: 560010018
1.5 Gallon MOA Seamless Aluminium Skinny Air Tank (5x NPT Ports, 200 PSI Rated)
$179.14
Seamless air tank technology combines beauty and function with high operating pressures. With no visual joints, flow formed threads and NPT ports revolutionising welded air tank construction.
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : Capacity 1.5 Gallon, Max Working Pressure 200PSI
Colour : Silver
Description
1.5 Gallon MOA Seamless Aluminium Skinny Air Tank (5x NPT Ports, 200 PSI Rated)
Air and Pneumatic Delivery Systems Aluminium Air Tanks parts by OBA
Seamless air tank technology combines beauty and function with high operating pressures. With no visual joints, flow formed threads and NPT ports revolutionising welded air tank construction.
The metal spinning process has now made it possible to manufacture these stunning tanks. The technique of closing both ends of the tube using the base material creates a true seamless tank. Following this each threaded port is created by press forming. This gies each port a long binding surface and no edge / burr or loss of material thickness
The MOA air tanks boast the highest thickest wall in the industry of 3.5mm thinnest to insure optimum lifelong efficiency.
Tank includes two strap style aluminium air tank mounts.
Aluminium Seamless Tank Spec and Range
Skinny (100mm Body Tanks)
1 Gallon
– Length: 720mm
– Diameter: 100mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.5kg
– Aluminium
1.5 Gallon
– Length: 840mm
– Diameter: 100mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.8kg
– Aluminium
Traditional (168mm Body Tanks)
1 Gallon (168mm Body)
– Length: 200mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.5kg
– Aluminium
1.5 Gallon (168mm Body)
– Length: 250mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 2.5kg
– Aluminium
3 Gallon (168mm Body)
– Length: 595mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 3.0kg
– Aluminium
4 Gallon (168mm Body)
– Length: 720mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 3.2kg
– Aluminium
5 Gallon (168mm Body)
– Length: 840mm
– Diameter: 168mm
– Height Including legs: 190mm
– 3 x 1/4″ Ports 2 x 3/8″ Ports
– 200PSI Rated
– 5.5kg
– Aluminium
SKU: 560010018
Additional information
Car and Truck, Off Road and 4×4, RV and Motorhome
Capacity 1.5 Gallon, Max Working Pressure 200PSI
Silver
