200 PSI 2.0 Gal. Tank High-Flow-200 Air Source Kit (12V, 200 PSI Compressor)
Air and Pneumatic Delivery Systems 200PSI Air Source Kits parts by OBA

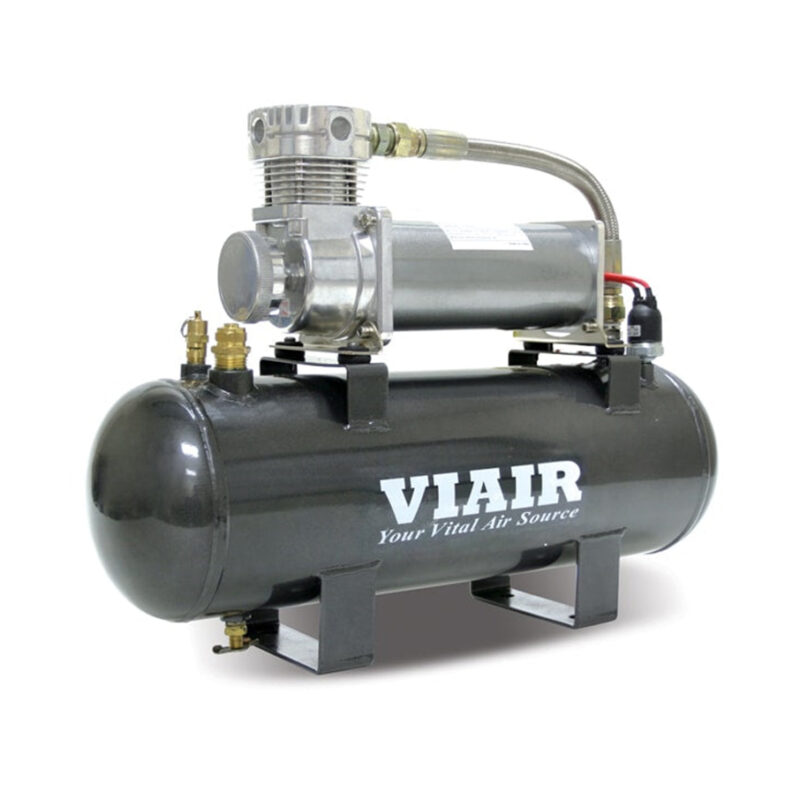

High-Flow 200 PSI Air Source Kits come with a powerful, low amp-draw 480C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8″ (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated
fuse is recommended for use with this unit.
| FEATURES |
| – 480C Pewter Air Compressor |
| – Thermal Overload Protector |
| – 2.0 Gallon Air Tank |
| – Pressure Switch (165 PSI On / 200 PSI Off) |
| – Safety Valve (250 PSI) |
| – Drain Cock |
| – Leader Hose with Check Valve |
| – |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 19.7″L x 5.9″W x 13.9″H |
| – Net Weight: 22.95 lbs. |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.86 |
10 |
0 |
52.7 |
10 |
| 10 |
1.75 |
12 |
1.0 |
47.5 |
13 |
| 20 |
1.59 |
14 |
2.0 |
43.2 |
15 |
| 30 |
1.52 |
15 |
3.0 |
40.7 |
16 |
| 40 |
1.45 |
16 |
4.0 |
38.1 |
18 |
| 50 |
1.41 |
17 |
5.0 |
35.3 |
18 |
| 60 |
1.33 |
18 |
6.0 |
32.6 |
19 |
| 70 |
1.26 |
18 |
7.0 |
30.0 |
20 |
| 80 |
1.20 |
19 |
8.0 |
27.0 |
22 |
| 90 |
1.13 |
19 |
9.0 |
25.0 |
22 |
| 100 |
1.07 |
20 |
10.0 |
22.3 |
21 |
| 110 |
0.99 |
21 |
11.0 |
20.1 |
21 |
| 120 |
0.93 |
23 |
12.0 |
18.3 |
21 |
| 130 |
0.88 |
22 |
13.0 |
16.0 |
20 |
| 140 |
0.82 |
22 |
14.0 |
14.0 |
19 |
| 150 |
0.75 |
21 |
|
|
|
| 160 |
0.71 |
21 |
|
|
|
| 170 |
0.67 |
21 |
|
|
|
| 180 |
0.61 |
21 |
|
|
|
| 190 |
0.55 |
20 |
|
|
|
| 200 |
0.51 |
19 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
3 min. 56 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 02 sec. (± 05 sec.) |
OE Reference: 20008
SKU: 530030004
