200 PSI High Pressure 2 On 2’s, JK (2007 ~ 2011) Two 380C’s On 2.0 Gal. Tank, w/Crossmember Bracket
Air and Pneumatic Delivery Systems 200PSI Dual Compressor OBA Kits parts by OBA

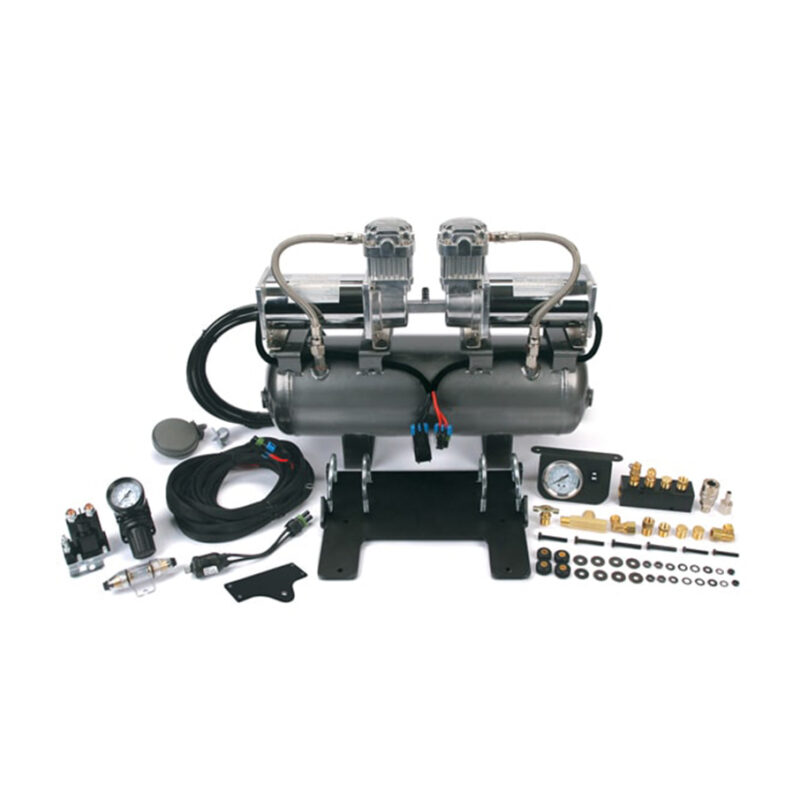

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high pressure onboard air system that provides 200 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket-2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.
Â
SPECIFICATIONS |
– 12-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI – Duty Cycle: 55% @ 200 PSI |
– Max. Working Pressure: 200 PSI |
– Max. Amp Draw: 44 Amps |
– Ingress Protection Rating: IP67 |
– Dimensions: 18.5″L x 5.9″W x 13.5″H |
– Net Weight: 30 lbs. |
– |
– |
– |
– |
– |
– |
– |
– |
– |
PRE-INSTALLED |
– 2.0 Gallon 5-Port Air Tank |
– (2) 380C Air Compressors w/Thermal Overload Protectors |
– (2) 1/4″ Stainless Steel Braided Leader Hoses |
– (2) 1/4″ JIC Fittings on Leader Hoses |
– 1/4″ NPT Swivel to 1/4″ NPT Swivel |
– T-Fitting (Remote Mount Filter) |
– 1/4″ NPT Drain Cock |
– Sealed Pressure Switch with Delphi Connectors (165 PSI On, 200 PSI Off) |
(2) Loomed Compressor Wires Terminated with Delphi Connectors |
– Inline Fuse Holder with Fuse |
– 1/4″ NPT Safety Valve |
– (4) 1/4″ NPT M Recessed Plugs |
– |
– |
INCLUDED IN KIT |
– Crossmember Mounting Bracket |
– 60-amp Fuse & Fuse Holder |
– 80-amp Relay |
– (2) 1/4″ BSP Adapters for Air Lockers |
– T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M |
– 1/8″ to 1/4″ NPT Reducer |
– Wiring Harness with Delphi Connectors |
– (2) Delphi Connector Plug Kits |
– Billet 1/4″ NPT x 6-Port Manifold and Mounting Bracket |
– Air Filter Housing with Installed Element |
– (2) Replacement Air Filter Elements |
– Dash Panel Air Pressure Gauge (0-200 PSI Illuminated) |
– Air Pressure Regulator |
– 15ft. DOT Air Line |
– |
– |
Please Note: 2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket.
PERFORMANCE DATA
PSI |
CFM |
A |
BAR |
LPM |
A |
0 |
2.54 |
28 |
0 |
72.0 |
28 |
10 |
2.42 |
29 |
1.0 |
67.0 |
30 |
20 |
2.30 |
31 |
2.0 |
61.7 |
33 |
30 |
2.17 |
33 |
3.0 |
57.5 |
34 |
40 |
2.07 |
34 |
4.0 |
53.5 |
36 |
50 |
1.95 |
35 |
5.0 |
49.8 |
37 |
60 |
1.87 |
36 |
6.0 |
46.4 |
39 |
70 |
1.78 |
37 |
7.0 |
43.3 |
41 |
80 |
1.70 |
38 |
8.0 |
40.3 |
43 |
90 |
1.61 |
39 |
9.0 |
37.2 |
44 |
100 |
1.54 |
41 |
10.0 |
34.5 |
42 |
110 |
1.46 |
42 |
11.0 |
31.8 |
41 |
120 |
1.40 |
43 |
12.0 |
29.2 |
40 |
130 |
1.32 |
44 |
13.0 |
26.6 |
38 |
140 |
1.25 |
43 |
14.0 |
23.7 |
37 |
150 |
1.19 |
42 |
|
|
|
160 |
1.12 |
41 |
|
|
|
170 |
1.06 |
40 |
|
|
|
180 |
0.99 |
39 |
|
|
|
190 |
0.93 |
38 |
|
|
|
200 |
0.86 |
37 |
|
|
|
FILL RATES
2.0 GALLON TANK |
FILL RATE |
0 to 200 PSI |
2 min. 35 sec. (± 10 sec.) |
165 to 200 PSI |
40 sec. (± 05 sec.) |
37″ X 12.5″ |
FILL RATE |
0 to 30 PSI |
5 min. 00 sec. (± 15 sec.) |
15 to 30 PSI |
2 min. 30 sec. (± 10 sec.) |
40″ X 15.5″ |
FILL RATE |
0 to 30 PSI |
5 min. 25 sec. (± 15 sec.) |
15 to 30 PSI |
2 min. 40 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
OE Reference: 30005
SKU: 530040002
