280C Dual Value Pack
Air and Pneumatic Delivery Systems 280C Model Range parts by OBA
The VIAIR 280C Dual Performance Value Pack is ideal for air suspension systems capable of providing a maximum of 150 PSI and a 30% duty cycle. The kit features two 12-volt Silver on Black 280C air compressors, two 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch. Each 280C Dual Performance Value Pack also comes with remote mountable air filter assemblies and mounting hardware.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.

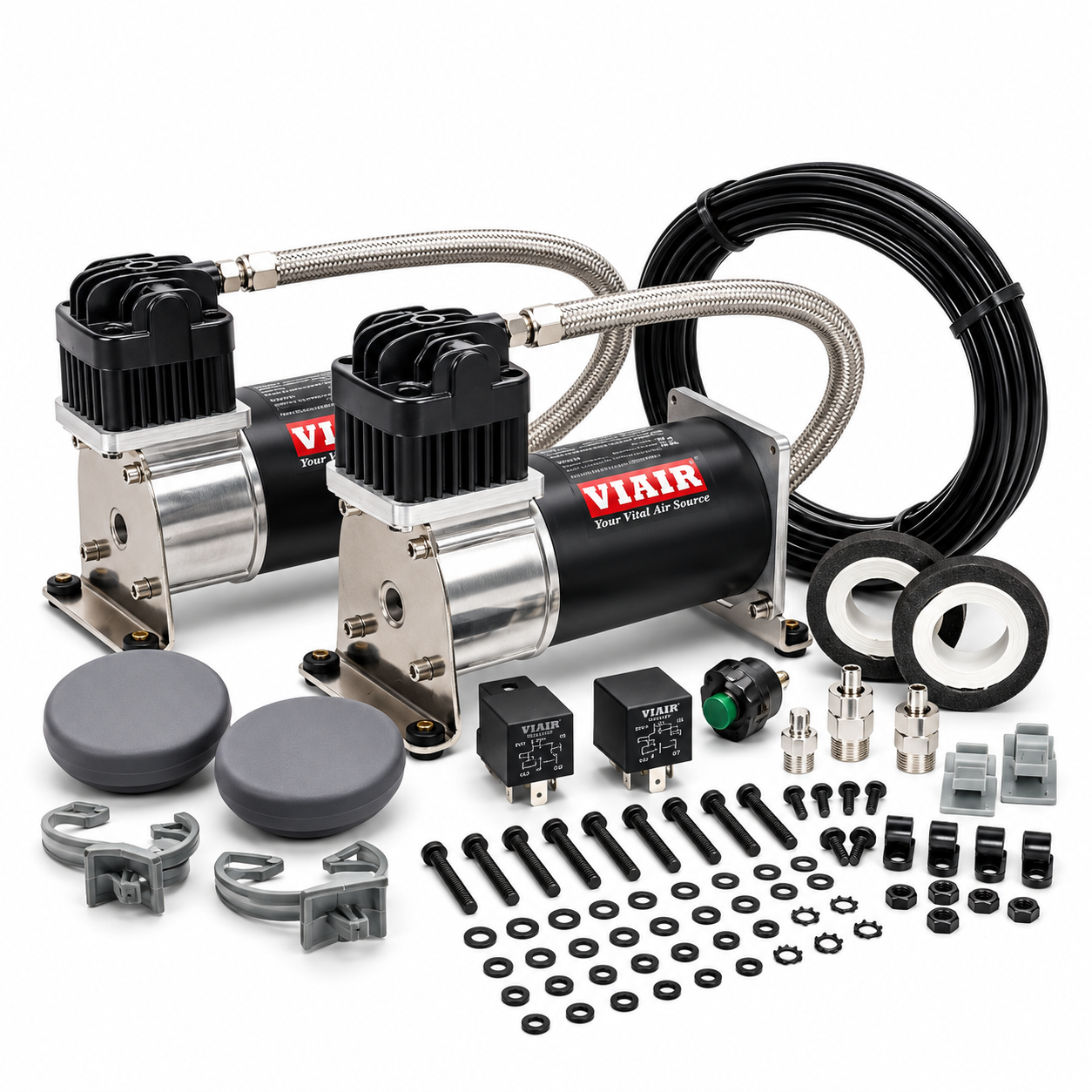

Features:
– (2) 280C (Black on Silver) Air Compressors
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (2) 40-Amp Relays
– (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 30% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. Amp Draw: 33 Amps
– Ingress Protection Rating: IP54
– Dimensions: 9″L x 4″W x 6.75″H (Each Unit)
– Net Weight: 17.50 lbs.
| 2.0 Gallon Tank |
Fill Rate |
| 0 to 145 PSI |
1 min. 34 sec. (± 10 sec.) |
| 110 to 145 PSI |
29 sec. (± 05 sec.) |
| 2.5 Gallon Tank |
Fill Rate |
| 0 to 145 PSI |
1 min. 44 sec. (± 10 sec.) |
| 110 to 145 PSI |
31 sec. (± 05 sec.) |
| 5.0 Gallon Tank |
Fill Rate |
| 0 to 145 PSI |
3 min. 54 sec. (± 15 sec.) |
| 110 to 145 PSI |
1 min. 11 sec. (± 10 sec.) |
OE Reference: 28002-1
SKU: 510020001
