Description

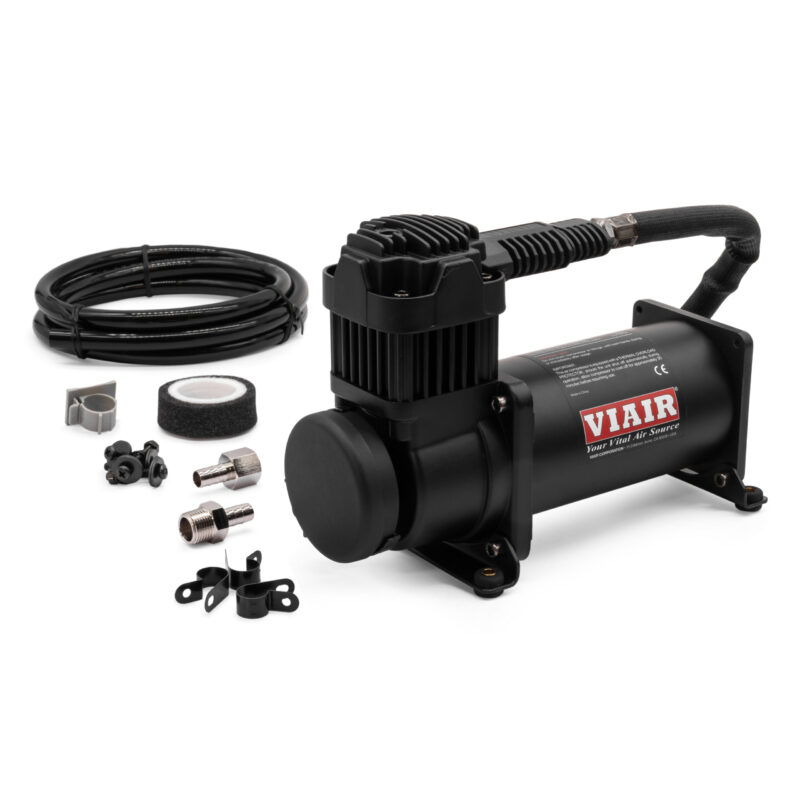

380C 200 PSI / 2.54 CFM – Stealth Black
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
The VIAIR 380C is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features a 12-volt Pewter, Chrome, or Stealth Black 380C air compressor, heavy duty 40-amp relay and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch, also comes with remote mountable air filter assemblies and mounting hardware.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| FEATURES |
– 380C (Chrome, Pewter, or Stealth Black available) Air Compressors
w/Thermal Overload Protectors |
| – Air Filter Assemblies |
| – Remote Mount Brackets |
| – Sets of Remote Mount Fittings |
| – Sets of Spare Air Filter Elements |
| – Leader Hose Clips |
| – (3) Air Line Clips with Included Hardware |
| – (4) Sets of Nuts, Bolts, Washers and Lock Washers |
| – 40-Amp Relays |
| – One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off) |
| – Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 44 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9″L x 4″W x 6.75″H (Each Unit) |
| – Net Weight: 17.50 lbs. |
| – |
| – |
| – |
| – |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
2.54 |
28 |
0 |
72.0 |
28 |
| 10 |
2.42 |
29 |
1.0 |
67.0 |
30 |
| 20 |
2.30 |
31 |
2.0 |
61.7 |
33 |
| 30 |
2.17 |
33 |
3.0 |
57.5 |
34 |
| 40 |
2.07 |
34 |
4.0 |
53.5 |
36 |
| 50 |
1.95 |
35 |
5.0 |
49.8 |
37 |
| 60 |
1.87 |
36 |
6.0 |
46.4 |
39 |
| 70 |
1.78 |
37 |
7.0 |
43.3 |
41 |
| 80 |
1.70 |
38 |
8.0 |
40.3 |
43 |
| 90 |
1.61 |
39 |
9.0 |
37.2 |
44 |
| 100 |
1.54 |
41 |
10.0 |
34.5 |
42 |
| 110 |
1.46 |
42 |
11.0 |
31.8 |
41 |
| 120 |
1.40 |
43 |
12.0 |
29.2 |
40 |
| 130 |
1.32 |
44 |
13.0 |
26.6 |
38 |
| 140 |
1.25 |
43 |
14.0 |
23.7 |
37 |
| 150 |
1.19 |
42 |
|
|
|
| 160 |
1.12 |
41 |
|
|
|
| 170 |
1.06 |
40 |
|
|
|
| 180 |
0.99 |
39 |
|
|
|
| 190 |
0.93 |
38 |
|
|
|
| 200 |
0.86 |
37 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
3 min. 13 sec. (± 10 sec.) |
| 165 to 200 PSI |
53 sec. (± 05 sec.) |
| 5.0 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
7 min. 11 sec. (± 15 sec.) |
| 165 to 200 PSI |
2 min. 06 sec. (± 10 sec.) |
OE Reference: 38036
SKU: 510010004
380C 200 PSI / 2.54 CFM – Stealth Black
£172.15inc 20% VAT
380C 200 PSI / 2.54 CFM – Stealth Black
OE Code : 38036
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Compressors (Singles), Max Working Pressure 200PSI
Colour : Black
Description
380C 200 PSI / 2.54 CFM – Stealth Black
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
The VIAIR 380C is ideal for air suspension systems capable of providing a maximum of 200 PSI and a 100% duty cycle. The kit features a 12-volt Pewter, Chrome, or Stealth Black 380C air compressor, heavy duty 40-amp relay and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch, also comes with remote mountable air filter assemblies and mounting hardware.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
w/Thermal Overload Protectors
PERFORMANCE DATA
* Supply Voltage: 13.8 Volts
FILL RATES
OE Reference: 38036
SKU: 510010004
Additional information
38036
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Compressors (Singles), Max Working Pressure 200PSI
Black
