Description
425C Gen. 2 175 PSI / 4.80 CFM – Stealth Black
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA

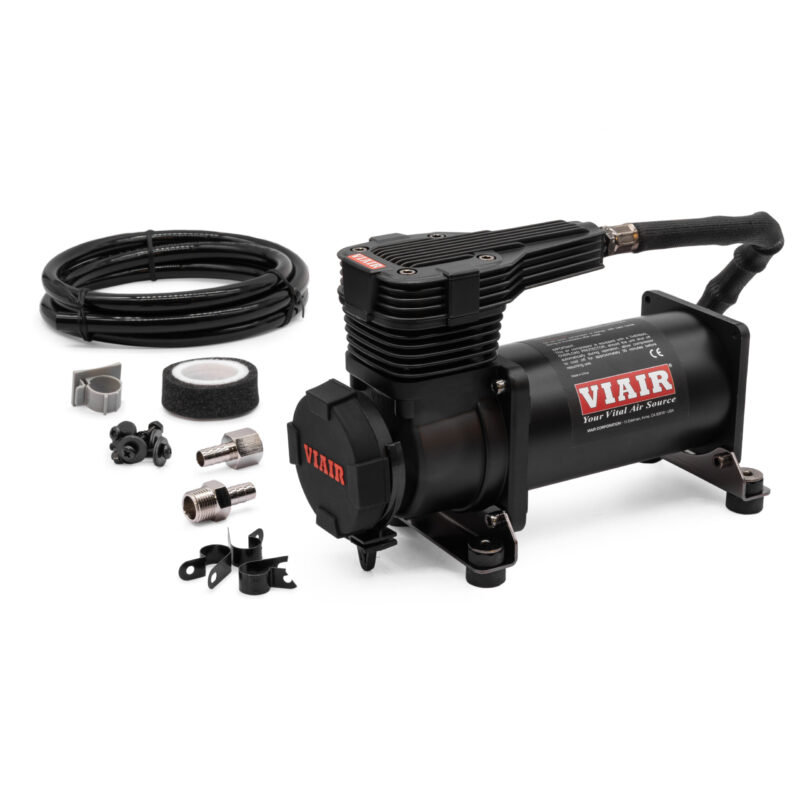

VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 2.40 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI,and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.
The 425C features a newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| FEATURES |
| – Thermal Overload Protector |
| – 425C (Platinum or Stealth Black) Compressor |
| – Stainless Steel Braided Leader Hose with Inline Check Valve |
| – Air Filter Assembly |
| – VIAIR Removable Filter Cover |
| – (2) Replacement Air Filter Elements |
| – Remote Mount Bracket |
| – Set of Remote Mount Fitting |
| – Set of Spare Air Filter Elements |
| – (2) Leader Hose Clips |
| – Air Line Clip with Included Hardware |
| – Mounting Hardware |
| – Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse) |
| – 40-Amp Relay |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 50% @ 100 PSI |
| – Duty Cycle: 33% @ 175 PSI |
| – Max. Working Pressure: 175 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. Amp Draw: 30 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9.25″L x 4.14″W x 6.59″H |
| – Net Weight: 11.10 lbs. |
| – |
| – |
| – |
| – |
| – |
| RECOMMENDED COMPONENTS |
| – 2.5 Gallon Tank (P/N 91028) |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
2.40 |
20 |
0 |
69.0 |
20 |
| 10 |
2.31 |
22 |
1.0 |
63.0 |
21 |
| 20 |
2.20 |
24 |
2.0 |
59.0 |
24 |
| 30 |
2.08 |
24 |
3.0 |
55.0 |
25 |
| 40 |
1.97 |
26 |
4.0 |
52.0 |
27 |
| 50 |
1.85 |
27 |
5.0 |
47.0 |
28 |
| 60 |
1.77 |
28 |
6.0 |
43.0 |
29 |
| 70 |
1.67 |
28 |
7.0 |
40.0 |
30 |
| 80 |
1.59 |
28 |
8.0 |
37.0 |
30 |
| 90 |
1.49 |
29 |
9.0 |
35.0 |
28 |
| 100 |
1.41 |
29 |
10.0 |
31.0 |
28 |
| 110 |
|
OE Reference: 42548
SKU: 510010008
425C Gen. 2 175 PSI / 4.80 CFM – Stealth Black
£196.85inc 20% VAT
425C Gen. 2 175 PSI / 4.80 CFM – Stealth Black
OE Code : 42548
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Compressors (Singles), Max Working Pressure 175PSI
Colour : Black
Description
425C Gen. 2 175 PSI / 4.80 CFM – Stealth Black
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 2.40 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI,and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.
The 425C features a newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
PERFORMANCE DATA
OE Reference: 42548
SKU: 510010008
Additional information
42548
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Compressors (Singles), Max Working Pressure 175PSI
Black
