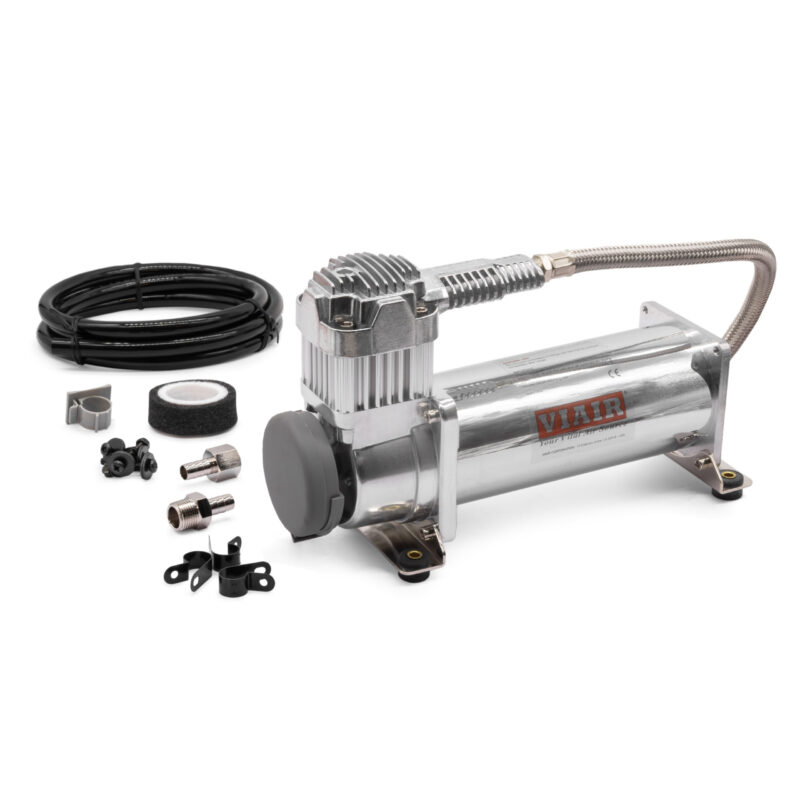

444C Chrome air compressor — product overview
The VIAIR 444C is a 12V, permanently mounted compressor for air suspension and other 200 PSI reservoir-based systems. This chrome version is identified in the OBA catalogue by manufacturer reference 44432. Select it according to the pressure and airflow your installation requires, as well as the electrical supply and available mounting space.
With a maximum rated working pressure of 200 PSI, the 444C is designed to supply compatible stored-air systems. Its 100% at 100 PSI; 50% at 200 PSI duty rating describes the operating interval at each stated pressure, rather than promising unlimited continuous use at maximum pressure. Actual tank recovery time will depend on the reservoir, starting pressure, system restrictions and installation.
Technical specifications
| Manufacturer reference (OE/MPN) |
44432 |
| Compressor family |
VIAIR 444C |
| Finish |
Chrome |
| Supply voltage |
12V DC |
| Maximum working pressure |
200 PSI |
| Free airflow at 0 PSI |
2.12 CFM |
| Duty cycle |
100% at 100 PSI; 50% at 200 PSI |
| Maximum current draw |
23 A |
| Ingress protection |
IP67 |
| Manufacturer recommended maximum tank size |
5 US gallons |
Choosing and installing your compressor
Allow for suitable wiring, circuit protection, a compatible pressure switch, correct fittings, thermal clearance and manufacturer-specified mounting. Compressor airflow stated at 0 PSI is a free-flow figure, not guaranteed output at the system’s operating pressure. Consult VIAIR’s installation documentation before commissioning, and use the original performance tables below for additional reference.
VIAIR’s 444C air compressors feature a newly-developed head assembly, with a patent pending intercooler head, and is capable of a maximum 200 PSI with a 100% duty cycle to power an air suspension system or any other application you may have. The 444C Pack includes a 12-volt Chrome or Stealth Black VIAIR 444C air compressor, which are also equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| FEATURES |
– 444C (Chrome or Stealth Black) Air Compressors
w/Thermal Overload Protectors |
| – Intercooler Head (Patents Pending) |
| – Air Filter Assemblies |
| – Remote Mount Brackets |
| – Sets of Remote Mount Fittings |
| – Sets of Spare Air Filter Elements |
| – (4) Sets of Nuts, Bolts, Washers and Lock Washers |
| – Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – (3) Airline Clips with Included Hardware |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 40 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit) |
| – Net Weight: 21.60 lbs. |
| – |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.53 |
25 |
0 |
100.0 |
25 |
| 10 |
3.25 |
27 |
1.0 |
88.5 |
29 |
| 20 |
2.97 |
31 |
2.0 |
81.3 |
33 |
| 30 |
2.86 |
33 |
3.0 |
75.6 |
34 |
| 40 |
2.72 |
34 |
4.0 |
70.6 |
36 |
| 50 |
2.58 |
35 |
5.0 |
65.5 |
37 |
| 60 |
2.47 |
36 |
6.0 |
59.0 |
39 |
| 70 |
2.35 |
37 |
7.0 |
53.1 |
40 |
| 80 |
2.19 |
38 |
8.0 |
47.7 |
39 |
| 90 |
2.03 |
39 |
9.0 |
43.2 |
39 |
| 100 |
1.90 |
40 |
10.0 |
38.8 |
38 |
| 110 |
1.74 |
40 |
11.0 |
34.7 |
37 |
| 120 |
1.65 |
39 |
12.0 |
30.6 |
36 |
| 130 |
1.53 |
39 |
13.0 |
25.8 |
34 |
| 140 |
1.41 |
38 |
14.0 |
23.8 |
33 |
| 150 |
1.32 |
38 |
|
|
|
| 160 |
1.22 |
37 |
|
|
|
| 170 |
1.13 |
36 |
|
|
|
| 180 |
1.00 |
35 |
|
|
|
| 190 |
0.89 |
34 |
|
|
|
| 200 |
0.85 |
33 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI |
46 sec. (± 05 sec.) |
| 5.0 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
5 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 35 sec. (± 05 sec.) |
OE Reference: 44432
SKU: 510010009
