£244.95
This high-performance suspension support unit is designed for vehicles that regularly carry heavy loads or tow trailers or for extremely light load applications. Adjustable air pressure allows the unit to be inflated or deflated to help maintain correct ride height and stability under varying loads, reducing rear sag and improving control on motorways and rough surfaces. Durable internal construction and weather-resistant components help ensure reliable performance in a wide range of conditions.
Description

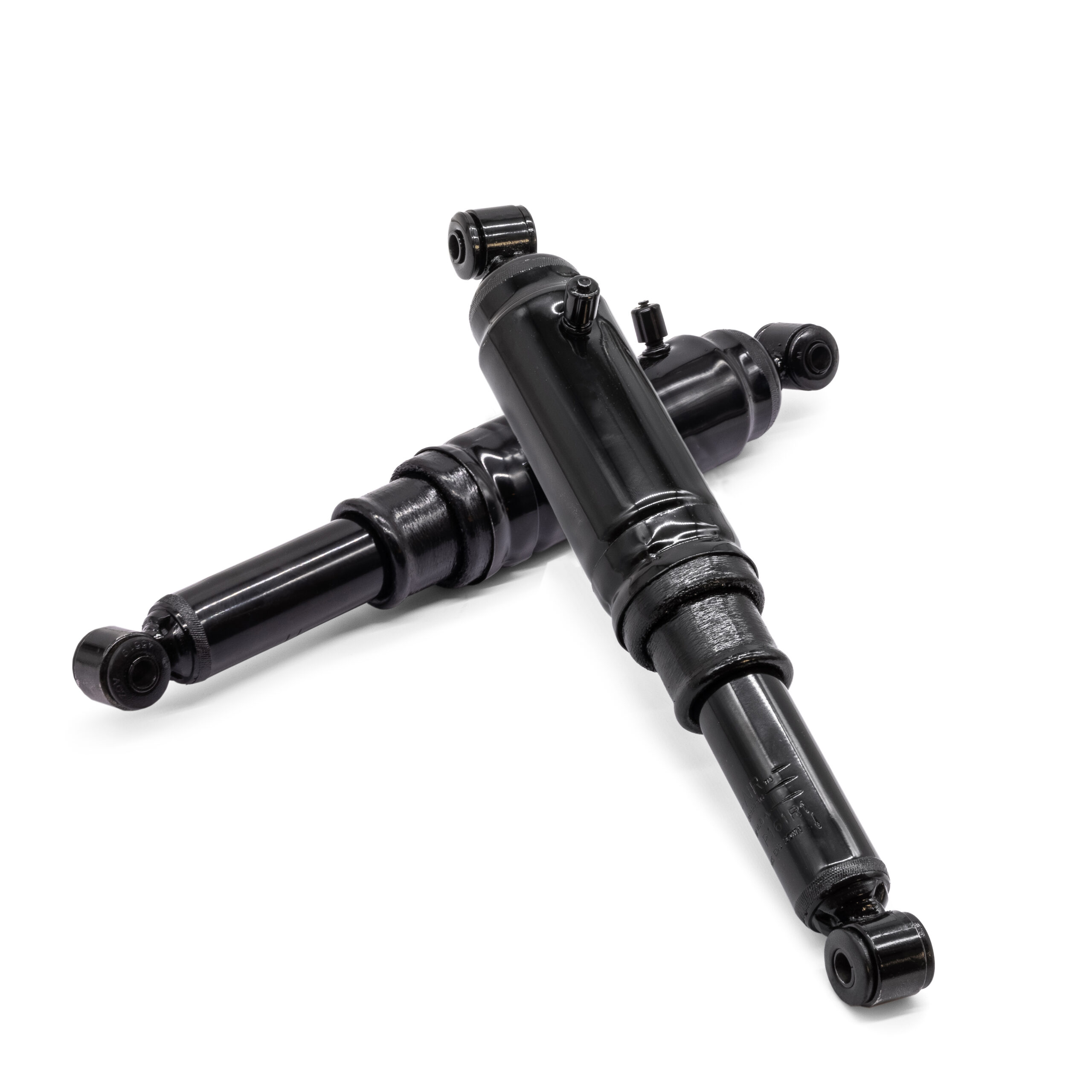

Premium Universal Suspension Assistive / Support Component
This high-performance suspension support unit is designed for vehicles that regularly carry heavy loads or tow trailers or for extremely light load applications. Adjustable air pressure allows the unit to be inflated or deflated to help maintain correct ride height and stability under varying loads, reducing rear sag and improving control on motorways and rough surfaces. Durable internal construction and weather-resistant components help ensure reliable performance in a wide range of conditions.
Key Features
- Adjustable air chamber provides load-related ride height control up to 10.3 bar (150 PSI).
- Hardened, precision-ground piston rod and robust internal piston for improved service life.
- Special valving and fluid for smooth compression and rebound response.
- Suitable for frequent use when carrying significant loads or towing.
- Supplied as a matched pair (two units).
Specifications
| Specification | Detail |
|---|---|
| Compressed Length | 305 mm (12.00 in) |
| Extended Length | 470 mm (18.50 in) |
| Travel Length | 165 mm (6.50 in) |
| Upper Mount Type | Loop bushing and sleeve mount – 12 mm sleeve internal diameter × 41 mm sleeve overall |
| Lower Mount Type | Loop bushing and sleeve mount – 12 mm sleeve internal diameter × 40 mm sleeve overall |
| Dust Shield | Included (rubber) |
| Bump Stop | Included |
| Hydraulic Lockout | No |
| Air Pressure Range | Approx. 1.4–10.3 bar (20–150 PSI) |
| Supplied As | Pair (2 units) |
SKU: 550010007
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Application |
