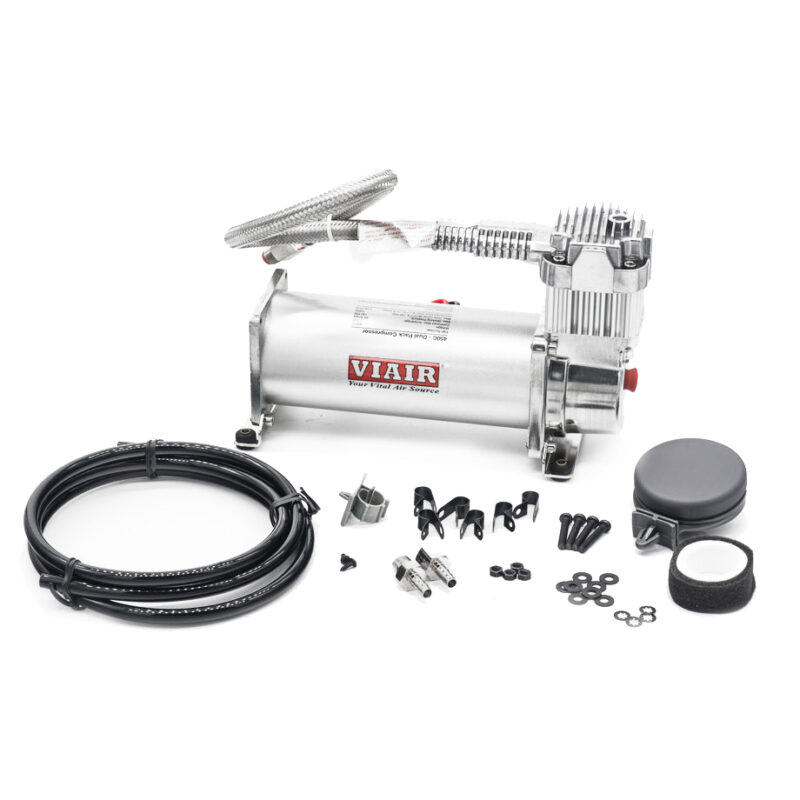

Viair 450C 150 PSI / 3.28 CFM – Silver
Air and Pneumatic Delivery Systems 12V Compressors parts by OBA
450C is a continuous duty cycle compressor. Features include a standard 1/4″ NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| FEATURES |
| – Thermal Overload Protector |
| – Check Valve |
| – Vibration Isolators |
| – Mounting Hardware |
| – Stainless Steel Braided Leader Hose |
| – Air Line for Remote Mount Air Filter |
| – Remote Mount Air Filter Assembly |
| – (2) Replacement Air Filter Elements |
| – Installation Instructions |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 5.0 Gallon |
| – Max. 12V Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.6″L x 4″W x 6.87″H |
| – Net Weight: 10.80 lbs. |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.80 |
12 |
0 |
51.0 |
12 |
| 10 |
1.75 |
14 |
1.0 |
47.6 |
15 |
| 20 |
1.60 |
16 |
2.0 |
43.3 |
17 |
| 30 |
1.52 |
17 |
3.0 |
38.2 |
18 |
| 40 |
1.39 |
18 |
4.0 |
34.0 |
19 |
| 50 |
1.27 |
19 |
5.0 |
30.5 |
20 |
| 60 |
1.18 |
19 |
6.0 |
28.1 |
21 |
| 70 |
1.09 |
20 |
7.0 |
26.4 |
22 |
| 80 |
1.04 |
20 |
8.0 |
25.0 |
23 |
| 90 |
0.97 |
21 |
9.0 |
23.0 |
22 |
| 100 |
0.94 |
22 |
10.0 |
21.0 |
21 |
| 110 |
0.90 |
23 |
|
OE Reference: 45012
SKU: 510010011
