450C Dual Value Pack 150 PSI / 3.28 CFM – Silver
Air and Pneumatic Delivery Systems 450C Model Range parts by OBA

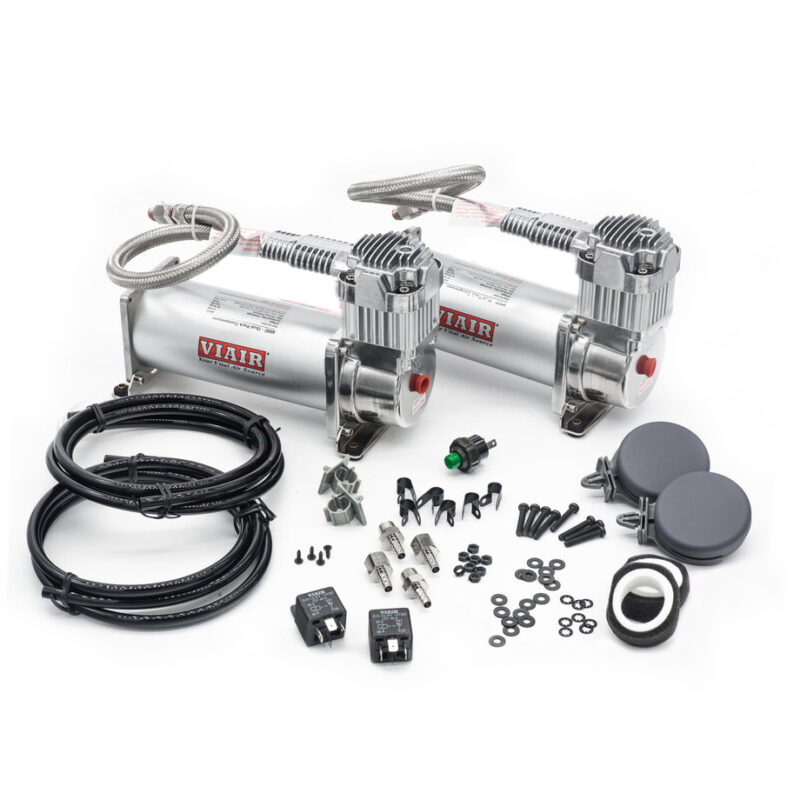

VIAIR’s 450C Dual Performance Value Pack is the “workhorse” of our Dual Performance Value Packs product line. With a 100% duty cycle and up to 150 PSI, the 450C Dual kit provides high performance for any air suspension kit, industrial applications, air horns or off-road mobile pneumatic needs. The 450C Dual Performance Pack kit features two VIAIR 450C Silver or Chrome air compressors, two heavy duty 40-amp relays, an 110 PSI cut-on, 145 PSI cut-off pressure switch and remote mount filter assemblies with mounting hardware.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| FEATURES |
– (2) 450C (Chrome or Silver) Air Compressors
w/Thermal Overload Protectors |
| – (2) Air Filter Assemblies |
| – (2) Remote Mount Brackets |
| – (2) Sets of Remote Mount Fittings |
| – (2) Sets of Spare Air Filter Elements |
| – (2) Leader Hose Clips |
| – (6) Air Line Clips with Included Hardware |
| – (8) Sets of Nuts, Bolts, Washers and Lock Washers |
| – (2) 40-Amp Relays |
| – (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off) |
| – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – Air Line (For Remote Mount Filter Installation) |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 44 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.6″L x 4″W x 6.87″H (Each Unit) |
| – Net Weight: 21.60 lbs. |
| – |
| – |
| – |
| – |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.28 |
28 |
0 |
93.0 |
28 |
| 10 |
3.04 |
29 |
1.0 |
83.0 |
30 |
| 20 |
2.79 |
32 |
2.0 |
75.4 |
34 |
| 30 |
2.65 |
34 |
3.0 |
71.0 |
37 |
| 40 |
2.54 |
36 |
4.0 |
66.6 |
40 |
| 50 |
2.44 |
38 |
5.0 |
61.0 |
41 |
| 60 |
2.33 |
40 |
6.0 |
56.0 |
42 |
| 70 |
2.19 |
41 |
7.0 |
52.0 |
44 |
| 80 |
2.05 |
42 |
8.0 |
47.0 |
43 |
| 90 |
1.94 |
43 |
9.0 |
42.3 |
42 |
| 100 |
1.85 |
44 |
10.0 |
37.5 |
41 |
| 110 |
1.72 |
44 |
|
|
|
| 120 |
1.62 |
43 |
|
|
|
| 130 |
1.50 |
42 |
|
|
|
| 140 |
1.38 |
41 |
|
|
|
| 150 |
1.27 |
41 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
1 min. 13 sec. (± 05 sec.) |
| 110 to 145 PSI |
23 sec. (± 03 sec.) |
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
1 min. 30 sec. (± 05 sec.) |
| 110 to 145 PSI |
31 sec. (± 03 sec.) |
| 5.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
3 min. 10 sec. (± 10 sec.) |
| 110 to 145 PSI |
1 min. 05 sec. (± 05 sec.) |
OE Reference: 45012-1
SKU: 510020011
