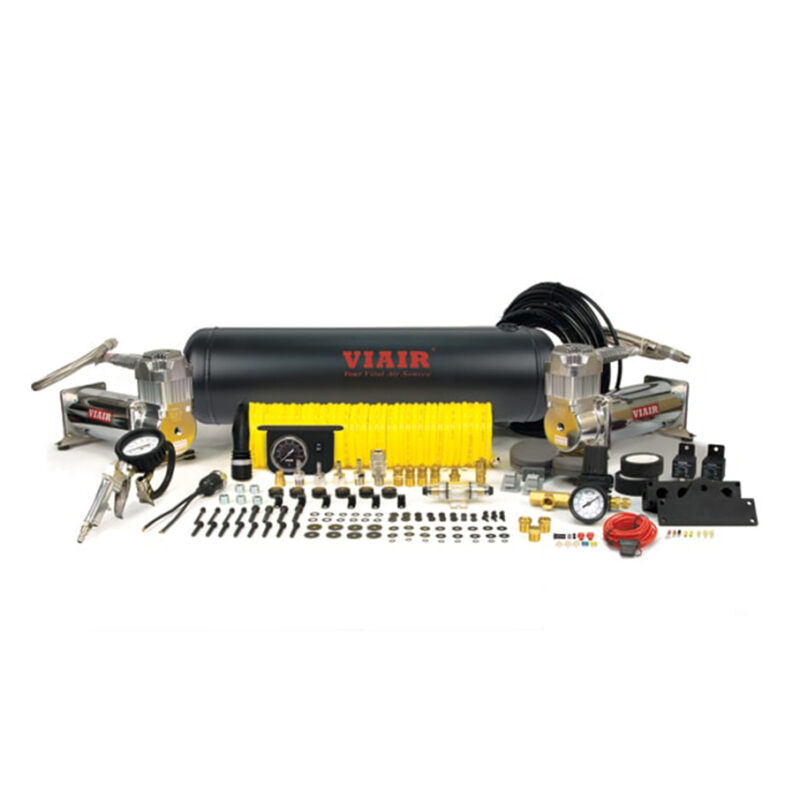

VIAIR’s Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two 444C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
| – 2.5 Gallon 200 PSI VIAIR Air Tank |
– (2) 444C VIAIR (Chrome or Stealth Black) Compressors
w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects (20019) OR |
| – 30ft. Black Sleeved Inside Braided Coil Hose (20020) |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – 200 PSI Illuminated Dash Panel Gauge |
| – (2) 40-amp Relays |
| – Inline Fuse Holder |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 250 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (3) 1/4″ Compression Fittings |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 40 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.53 |
25 |
0 |
100.0 |
25 |
| 10 |
3.25 |
27 |
1.0 |
88.5 |
39 |
| 20 |
2.97 |
31 |
2.0 |
81.3 |
33 |
| 30 |
2.86 |
33 |
3.0 |
75.6 |
34 |
| 40 |
2.72 |
34 |
4.0 |
70.6 |
36 |
| 50 |
2.58 |
35 |
5.0 |
65.5 |
37 |
| 60 |
2.47 |
36 |
6.0 |
59.0 |
39 |
| 70 |
2.35 |
37 |
7.0 |
53.1 |
40 |
| 80 |
2.19 |
38 |
8.0 |
47.7 |
39 |
| 90 |
2.03 |
39 |
|
OE Reference: 20019
SKU: 530020007
