Dual Chrome 480C Onboard Air System (200 PSI, 3.53 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 480C OBA Range parts by OBA

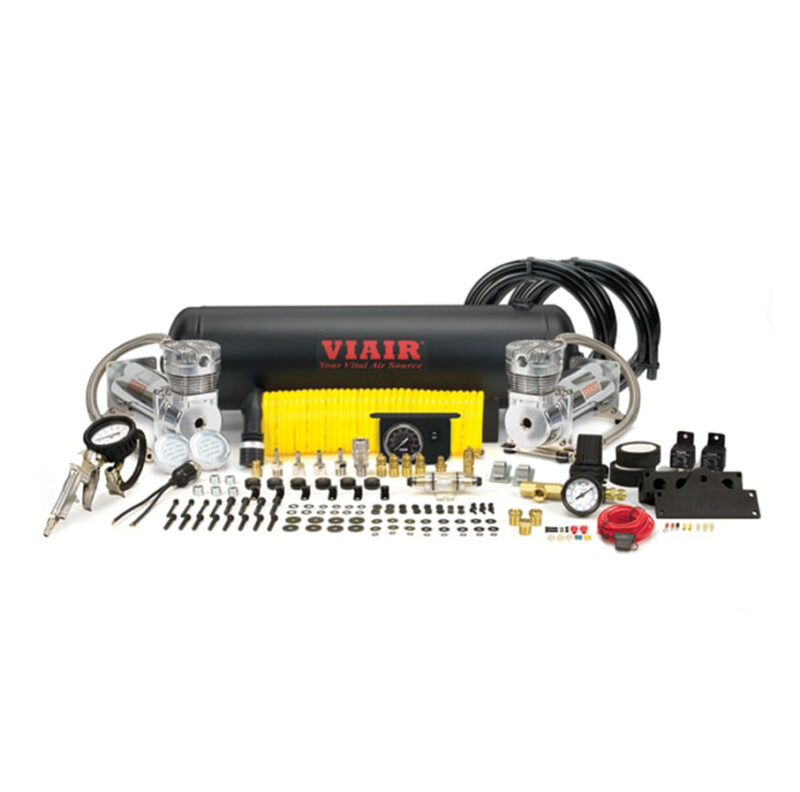

VVIAIR’s Dual 480C Onboard Air System has an increased head port size of 3/8″ NPT, allowing it to provide the highest CFM on 100% duty cycle compressors rated at 100PSI. This Onboard Air System is a pre-packaged compressed air solution that offers two Chrome or Stealth Black 480C 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
| FEATURES |
| – 2.5 Gallon 200 PSI VIAIR Air Tank |
– (2) 480C Chrome or Stealth Black VIAIR Compressors
w/Thermal Overload Protectors |
| – Illuminated Dash Panel Gauge Kit, Black Face 200 PSI |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – 1/4″ Drain Cock |
| – (2) 40-amp Relays |
| – 60 Amp Inline Fuse Holder |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 250 PSI Safety Valve |
| – (4) 1/4″ Compression Fittings |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – 30 Ft. Extension Coil Hose |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 40 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.53 |
25 |
0 |
100.0 |
25 |
| 10 |
3.10 |
28 |
1.0 |
86.5 |
29 |
| 20 |
3.00 |
31 |
2.0 |
81.4 |
33 |
| 30 |
2.86 |
33 |
3.0 |
76.8 |
35 |
| 40 |
2.75 |
35 |
4.0 |
72.7 |
37 |
| 50 |
2.64 |
36 |
5.0 |
67.6 |
39 |
| 60 |
2.55 |
37 |
6.0 |
61.2 |
41 |
| 70 |
2.43 |
39 |
7.0 |
55.3 |
42 |
| 80 |
2.26 |
40 |
8.0 |
50.1 |
44 |
| 90 |
2.12 |
41 |
9.0 |
45.0 |
44 |
| 100 |
1.97 |
42 |
10.0 |
40.6 |
43 |
| 110 |
1.84 |
43 |
11.0 |
36.8 |
41 |
| 120 |
1.72 |
44 |
12.0 |
32.4 |
40 |
| 130 |
1.59 |
44 |
13.0 |
28.0 |
37 |
| 140 |
1.49 |
43 |
14.0 |
24.8 |
36 |
| 150 |
1.38 |
42 |
|
|
|
| 160 |
1.29 |
41 |
|
|
|
| 170 |
1.18 |
40 |
|
|
|
| 180 |
1.09 |
39 |
|
|
|
| 190 |
0.97 |
37 |
|
|
|
| 200 |
0.90 |
36 |
|
|
|
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI |
46 sec. (± 05 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
3 min. 50 sec. (± 10 sec.) |
| 15 to 30 PSI |
1 min. 55 sec. (± 05 sec.) |
| 40″ X 15.5″ |
FILL RATE |
| 0 to 30 PSI |
4 min. 40 sec. (± 10 sec.) |
| 15 to 30 PSI |
2 min. 00 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
OE Reference: 20021
SKU: 530020009
