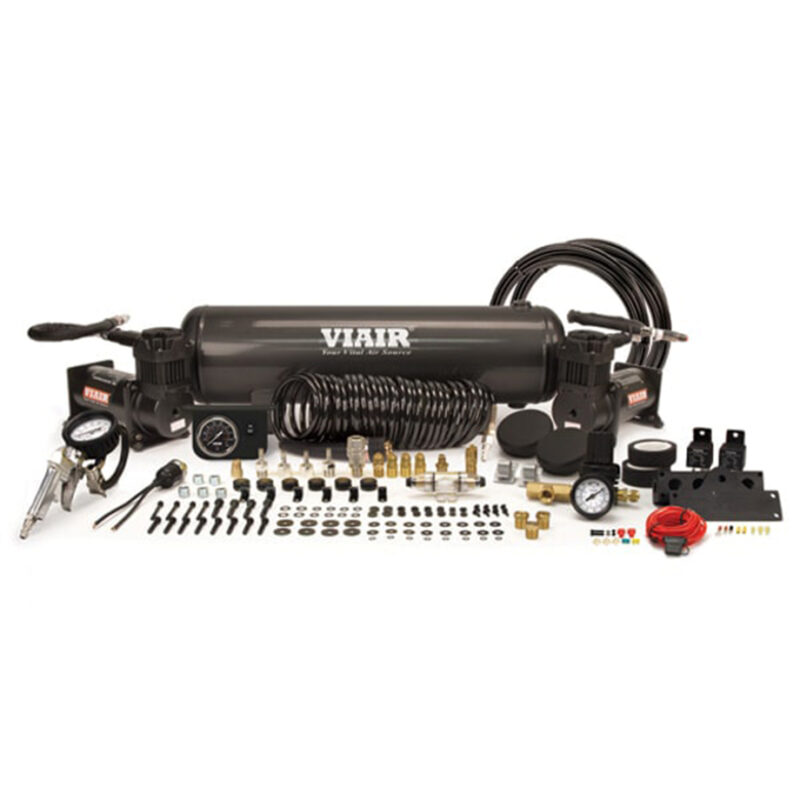

VIAIR’s Dual 380C Onboard Air System is a pre-packaged compressed air solution that provides two 380C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
| FEATURES |
| – 2.5 Gallon 200 PSI VIAIR Air Tank |
– (2) 380C VIAIR (Stealth Black or Pewter) Compressors
w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects (20013)or |
| – 30ft. Black Inside Braided Coil Hose (20014) |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – 200 PSI Illuminated Dash Panel Gauge |
| – (2) 40-amp Relays |
| – Inline Fuse Holder |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 250 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (3) 1/4″ Compression Fittings |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 44 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included..
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
2.54 |
28 |
0 |
72.0 |
28 |
| 10 |
2.42 |
29 |
1.0 |
67.0 |
30 |
| 20 |
2.30 |
31 |
2.0 |
61.7 |
33 |
| 30 |
2.17 |
33 |
3.0 |
57.5 |
34 |
| 40 |
2.07 |
34 |
4.0 |
53.5 |
36 |
| 50 |
1.95 |
35 |
5.0 |
49.8 |
37 |
| 60 |
1.87 |
36 |
6.0 |
46.4 |
39 |
| 70 |
1.78 |
37 |
7.0 |
43.3 |
41 |
| 80 |
1.70 |
38 |
8.0 |
40.3 |
43 |
| 90 |
1.61 |
39 |
9.0 |
37.2 |
44 |
| 100 |
1.54 |
41 |
10.0 |
34.5 |
42 |
| 110 |
1.46 |
42 |
11.0 |
31.8 |
41 |
| 120 |
1.40 |
43 |
12.0 |
29.2 |
40 |
| 130 |
1.32 |
44 |
13.0 |
26.6 |
38 |
| 140 |
1.25 |
43 |
14.0 |
23.7 |
37 |
| 150 |
1.19 |
42 |
|
|
|
| 160 |
1.12 |
41 |
|
|
|
| 170 |
1.06 |
40 |
|
|
|
| 180 |
0.99 |
39 |
|
|
|
| 190 |
0.93 |
38 |
|
|
|
| 200 |
0.86 |
37 |
|
|
|
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
3 min. 13 sec. (± 10 sec.) |
| 165 to 200 PSI |
53 sec. (± 05 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
5 min. 00 sec. (± 15 sec.) |
| 15 to 30 PSI |
2 min. 30 sec. (± 10 sec.) |
| 40″ X 15.5″ |
FILL RATE |
| 0 to 30 PSI |
5 min. 25 sec. (± 15 sec.) |
| 15 to 30 PSI |
2 min. 40 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
OE Reference: 20014
SKU: 530020003
