Description

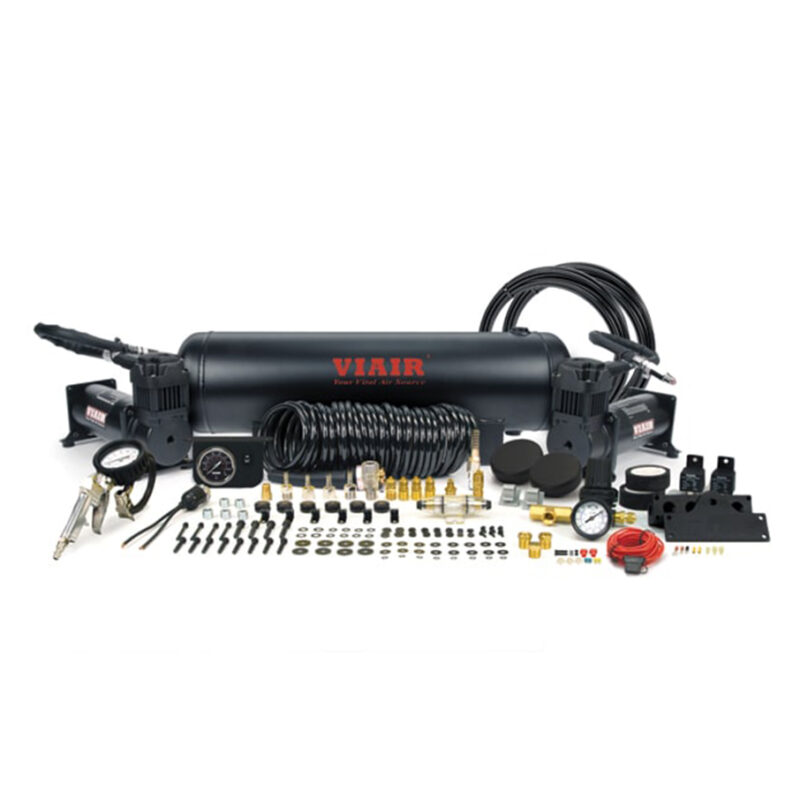

Dual Stealth Black 444C Onboard Air System (200 PSI, 3.53 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 444C OBA Range parts by OBA
VIAIR’s Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two 444C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
| – 2.5 Gallon 200 PSI VIAIR Air Tank |
– (2) 444C VIAIR (Chrome or Stealth Black) Compressors
w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects (20019) OR |
| – 30ft. Black Sleeved Inside Braided Coil Hose (20020) |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – 200 PSI Illuminated Dash Panel Gauge |
| – (2) 40-amp Relays |
| – Inline Fuse Holder |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 250 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (3) 1/4″ Compression Fittings |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 40 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.53 |
25 |
0 |
100.0 |
25 |
| 10 |
3.25 |
27 |
1.0 |
88.5 |
39 |
| 20 |
2.97 |
31 |
2.0 |
81.3 |
33 |
| 30 |
2.86 |
33 |
3.0 |
75.6 |
34 |
| 40 |
2.72 |
34 |
4.0 |
70.6 |
36 |
| 50 |
2.58 |
35 |
5.0 |
65.5 |
37 |
| 60 |
2.47 |
36 |
6.0 |
59.0 |
39 |
| 70 |
2.35 |
37 |
7.0 |
53.1 |
40 |
| 80 |
2.19 |
38 |
8.0 |
47.7 |
39 |
| 90 |
2.03 |
39 |
|
OE Reference: 20020
SKU: 530020008
Dual Stealth Black 444C Onboard Air System (200 PSI, 3.53 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
$959.94
Dual Stealth Black 444C Onboard Air System (200 PSI, 3.53 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
OE Code : 20020
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Capacity 2.5 Gallon, Inflates upto 40" Tyres, Max Working Pressure 200PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Colour : Black
Description
Dual Stealth Black 444C Onboard Air System (200 PSI, 3.53 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 444C OBA Range parts by OBA
VIAIR’s Dual 444C Onboard Air System is a pre-packaged compressed air solution that provides two 444C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
w/Thermal Overload Protectors
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
OE Reference: 20020
SKU: 530020008
Additional information
20020
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Capacity 2.5 Gallon, Inflates upto 40" Tyres, Max Working Pressure 200PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Black
