Description
Dual Stealth Black 485C Onboard Air System (200 PSI, 3.82 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 485C OBA Range parts by OBA

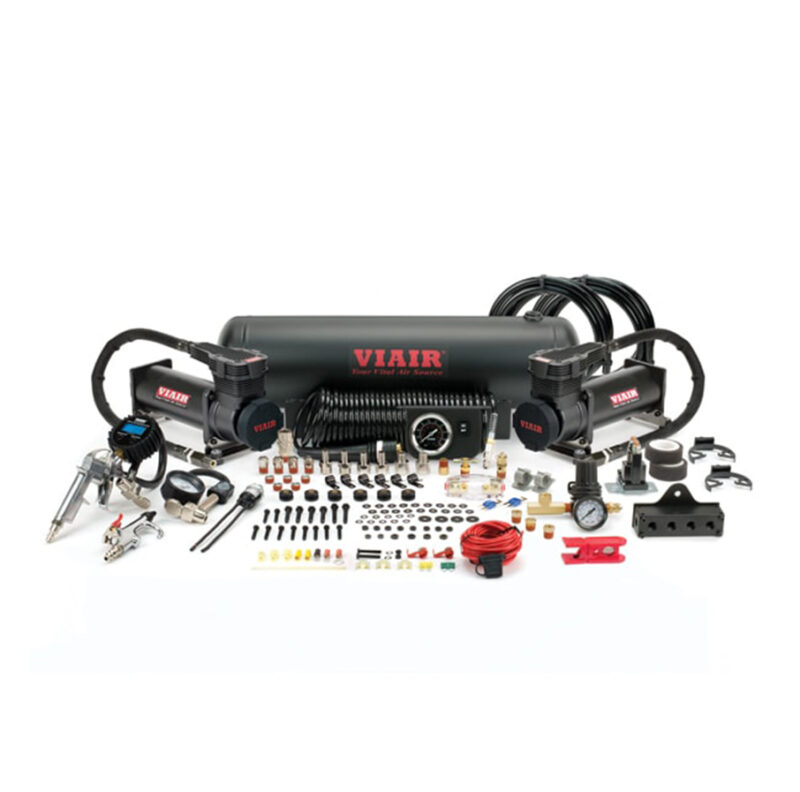

VIAIR’s Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.
The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
| FEATURES |
| – 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI) |
– (2) 485C (Platinum or Stealth Black) Compressors
w/Thermal Overload Protectors |
| – Illuminated Dash Panel Gauge Kit, Black Face 200 PSI |
| – Digital Tire Inflation Gun (180PSI) |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (165 PSI on, 200 PSI off) |
| – 1/4″ Drain Cock |
| – Heavy Duty 80 Amp Relay |
| – Mini ANL Fuse Holder with 60 Amp Fuse |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 250 PSI Safety Valve |
| – (4) 1/4″ NPT(M) to 1/4″ Airline Straight Push to Connect Fittings |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – Extension Braided Black Coil Hose |
| – Rubber Tip Blow Gun |
| – 3-in-1 Air Down Gauge |
| – Stainless Steel Air Line Cutter |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 200 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 44 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit) |
| – Net Weight: 22.10 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included..
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.82 |
23 |
0 |
110.0 |
23 |
| 10 |
3.51 |
26 |
1.0 |
93.0 |
27 |
| 20 |
3.27 |
30 |
2.0 |
84.0 |
31 |
| 30 |
3.05 |
32 |
3.0 |
75.0 |
35 |
| 40 |
2.90 |
35 |
4.0 |
71.0 |
37 |
| 50 |
2.73 |
37 |
5.0 |
65.0 |
39 |
| 60 |
2.61 |
38 |
6.0 |
61.0 |
41 |
| 70 |
2.45 |
40 |
7.0 |
55.0 |
41 |
| 80 |
2.34 |
41 |
8.0 |
50.0 |
42 |
| 90 |
2.24 |
41 |
9.0 |
45.0 |
42 |
| 100 |
2.09 |
41 |
10.0 |
41.0 |
42 |
| 110 |
1.94 |
42 |
11.0 |
39.0 |
41 |
| 120 |
1.87 |
42 |
12.0 |
34.0 |
40 |
| 130 |
1.72 |
42 |
13.0 |
32.0 |
40 |
| 140 |
1.64 |
42 |
14.0 |
29.0 |
39 |
| 150 |
1.55 |
42 |
|
|
|
| 160 |
1.48 |
41 |
|
|
|
| 170 |
1.37 |
41 |
|
|
|
| 180 |
1.29 |
41 |
|
|
|
| 190 |
1.22 |
40 |
|
|
|
| 200 |
1.13 |
39 |
|
|
|
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
2 min. 20 sec. (± 10 sec.) |
| 165 to 200 PSI |
35 sec. (± 03 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
3 min. 46 sec. (± 10 sec.) |
| 15 to 30 PSI |
1 min. 52 sec. (± 10 sec.) |
| 40″ X 15.5″ |
FILL RATE |
| 0 to 30 PSI |
4 min. 39 sec. (± 15 sec.) |
| 15 to 30 PSI |
2 min. 02 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
OE Reference: 20185
SKU: 530020014
Dual Stealth Black 485C Onboard Air System (200 PSI, 3.82 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
$1,241.41
Dual Stealth Black 485C Onboard Air System (200 PSI, 3.82 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
OE Code : 20185
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Capacity 2.5 Gallon, Inflates upto 40" Tyres, Max Working Pressure 200PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Colour : Black
Description
Dual Stealth Black 485C Onboard Air System (200 PSI, 3.82 CFM, 40 Amp, 12V, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 485C OBA Range parts by OBA
VIAIR’s Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.
The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
w/Thermal Overload Protectors
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included..
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
FILL RATES
* Supply Voltage: 13.8 Volts
OE Reference: 20185
SKU: 530020014
