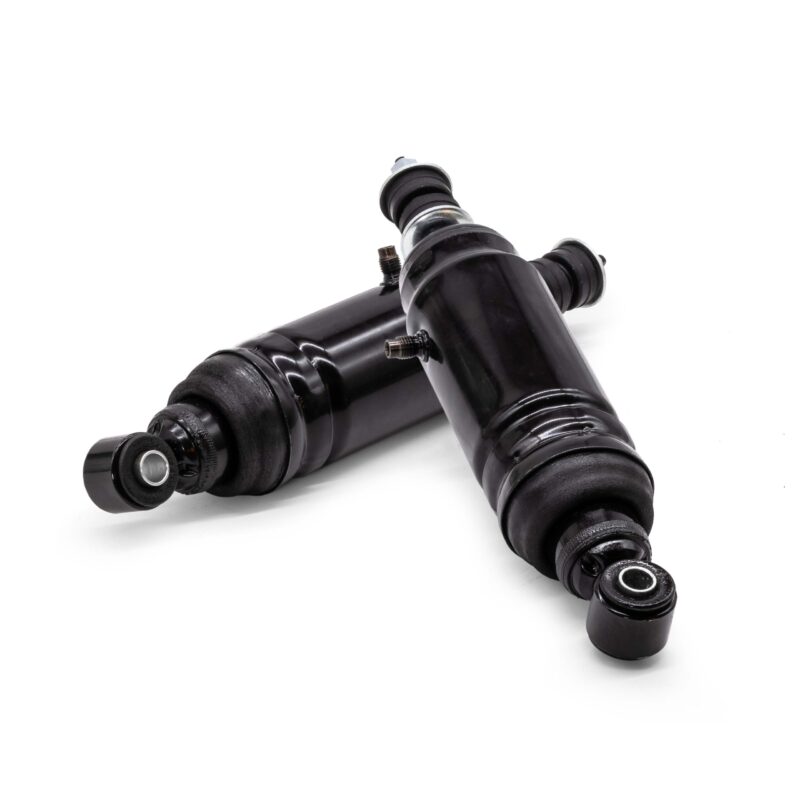

Universal Assistive Air Shock Stud – Eyelet Fitment, Light Load Applications

£244.95inc 20% VAT

This high-performance suspension support unit is designed for vehicles that regularly carry heavy loads or tow trailers or for vehicles with extremely light load applications. Adjustable air pressure allows the unit to be inflated or deflated to help maintain correct ride height and stability under changing load conditions, reducing rear sag and improving control on motorways and uneven road surfaces. Durable internal construction and weather-resistant components ensure consistent performance across a wide range of temperatures and driving conditions.

Backorder

Estimate Postage

Want to be notified when this product is back in stock?

550010006 Category: Tag:

Description

Premium Universal Suspension Assistive / Support Component

This high-performance suspension support unit is designed for vehicles that regularly carry heavy loads or tow trailers or for vehicles with extremely light load applications. Adjustable air pressure allows the unit to be inflated or deflated to help maintain correct ride height and stability under changing load conditions, reducing rear sag and improving control on motorways and uneven road surfaces. Durable internal construction and weather-resistant components ensure consistent performance across a wide range of temperatures and driving conditions.

Key Features

  • Adjustable air chamber provides load-related ride height control up to 10.3 bar (150 PSI).
  • Precision-ground, hardened piston rod with durable internal components for long service life.
  • Specially tuned valving and fluid deliver smooth compression and rebound characteristics.
  • Suitable for regular use when carrying heavy loads or towing.
  • Supplied as a matched pair (two units).

Specifications

Specification Detail
Compressed Length 260 mm (10.25 in)
Extended Length 416 mm (16.375 in)
Travel Length 156 mm (6.125 in)
Upper Mount Type Stem mount – 60 mm stem length × 3/8″-16 thread
Lower Mount Type Loop bushing and sleeve mount – 11 mm sleeve internal diameter × 48 mm overall length
Dust Shield Included (rubber)
Bump Stop Included
Hydraulic Lockout No
Air Pressure Range Approx. 1.4–10.3 bar (20–150 PSI)
Supplied As Pair (2 units)


SKU: 550010006



Information

Shipping
Worldwide Shipping Available

Support
Have a Technical Question, contact us directly via our Contact Form.

Specifications

Weight 6 kg
Dimensions 10 × 10 × 10 cm
