150 PSI High Speed 2 On 2’s (Universal) Two 400C’s On 2.0 Gal. Tank, No Crossmember Bracket
Air and Pneumatic Delivery Systems 150PSI Dual Compressor OBA Kits parts by OBA

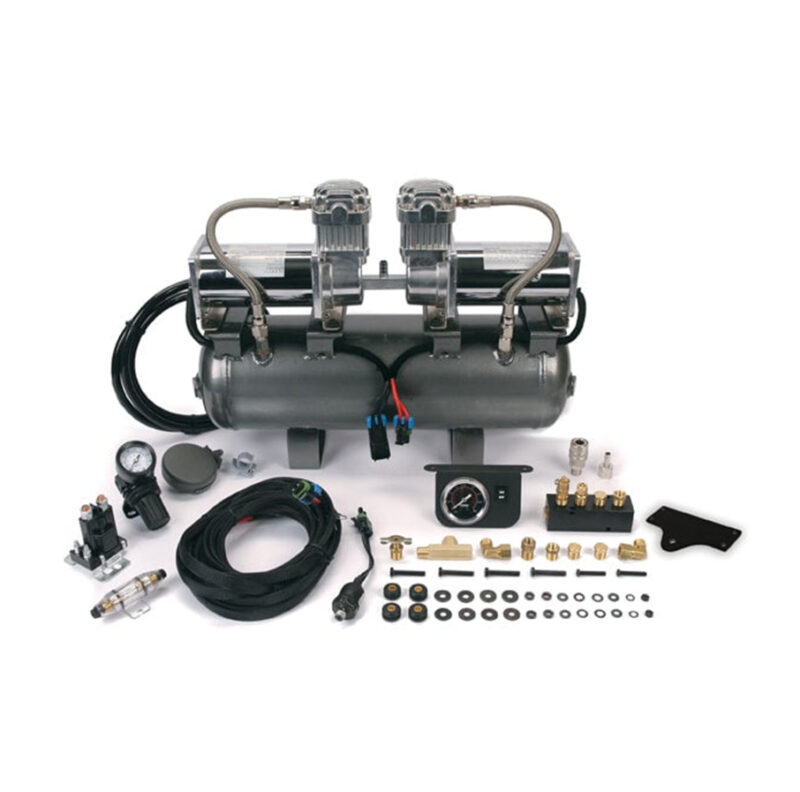

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. 2ON2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 59 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 18.5″L x 5.9″W x 13.5″H |
| – Net Weight: 30 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| PRE-INSTALLED |
| – 2.0 Gallon 5-Port Air Tank |
| – (2) 400C Air Compressors w/Thermal Overload Protectors |
| – (2) 1/4″ Stainless Steel Braided Leader Hoses |
| – (2) 1/4″ JIC Fittings on Leader Hoses |
| – 1/4″ NPT Swivel to 1/4″ NPT Swivel |
| – T-Fitting (Remote Mount Filter) |
| – 1/4″ NPT Drain Cock |
– Sealed Pressure Switch with Delphi Connectors
(110 PSI On, 145 PSI Off) |
(2) Loomed Compressor Wires Terminated
with Delphi Connectors |
| – Inline Fuse Holder with Fuse |
| – 1/4″ NPT Safety Valve |
| – (4) 1/4″ NPT M Recessed Plugs |
| INCLUDED IN KIT |
| – 60-amp Fuse & Fuse Holder |
| – 80-amp Relay |
| – (2) 1/4″ BSP Adapters for Air Lockers |
| – T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M |
| – 1/8″ to 1/4″ NPT Reducer |
| – Wiring Harness with Delphi Connectors |
| – (2) Delphi Connector Plug Kits |
| – Billet 1/4″ NPT x 6-Port Manifold and Mounting Bracket |
| – Air Filter Housing with Installed Element |
| – (2) Replacement Air Filter Elements |
| – Dash Panel Air Pressure Gauge (0-160 PSI Illuminated) |
| – Air Pressure Regulator |
| – 15ft. DOT Air Line |
| – |
Please Note: 2on2 Bolt-On Platform systems in universal models are not equipped with a crossmember mounting bracket.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
4.55 |
39 |
0 |
129.0 |
39 |
| 10 |
4.18 |
40 |
1.0 |
115.6 |
41 |
| 20 |
3.96 |
42 |
2.0 |
106.5 |
45 |
| 30 |
3.74 |
45 |
3.0 |
96.6 |
47 |
| 40 |
3.50 |
46 |
4.0 |
86.4 |
50 |
| 50 |
3.25 |
48 |
5.0 |
78.4 |
53 |
| 60 |
3.00 |
50 |
6.0 |
70.8 |
58 |
| 70 |
2.83 |
52 |
7.0 |
64.0 |
57 |
| 80 |
2.60 |
55 |
8.0 |
57.5 |
54 |
| 90 |
2.46 |
59 |
9.0 |
50.6 |
52 |
| 100 |
2.28 |
57 |
10.0 |
43.7 |
50 |
| 110 |
2.12 |
55 |
|
|
|
| 120 |
1.97 |
53 |
|
|
|
| 130 |
1.80 |
52 |
|
|
|
| 140 |
1.60 |
51 |
|
|
|
| 150 |
1.48 |
49 |
|
|
|
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
1 min. 00 sec. (± 05 sec.) |
| 110 to 145 PSI |
20 sec.(± 03 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
3 min. 25 sec. (± 10 sec.) |
| 15 to 30 PSI |
1 min. 40 sec. (± 05 sec.) |
| 40″ X 15.5″ |
FILL RATE |
| 0 to 30 PSI |
3 min. 35 sec. (± 10 sec.) |
| 15 to 30 PSI |
1 min. 45 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
OE Reference: 30016
SKU: 530040003
