Description

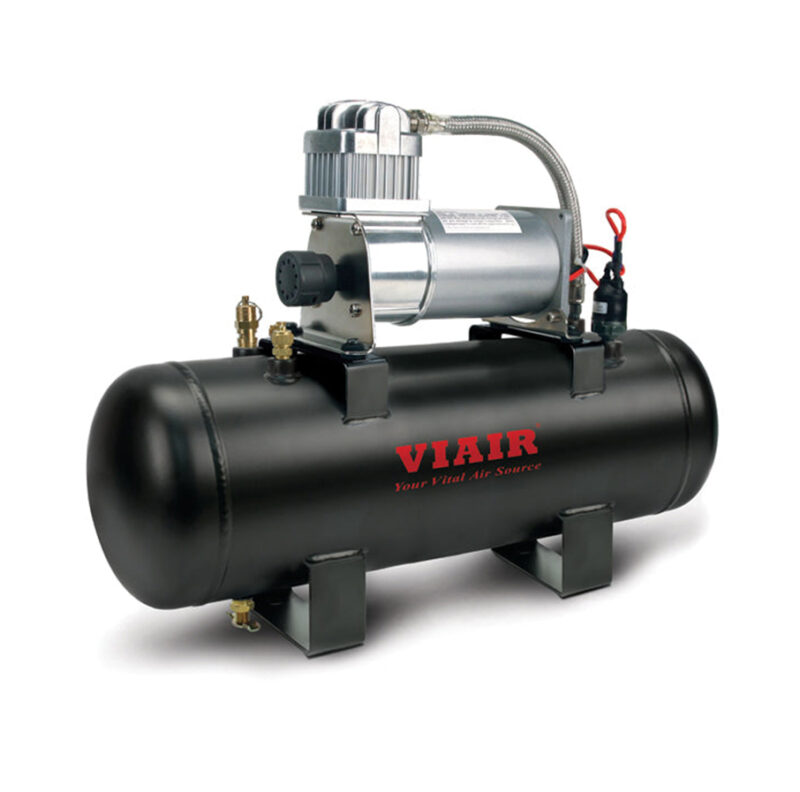

2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)
Air and Pneumatic Delivery Systems 150PSI Air Source Kits parts by OBA
150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gallon Matte Black air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4″ NPT brass drain cock, 1/4″ NPT ASME coded and certified safety valve, 1/2″ NPT port compression fitting for 3/8″ (I.D.) air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
| FEATURES |
| – 280C Pewter Air Compressor |
| – Thermal Overload Protector |
| – 2.0 Gallon Matte Black Air Tank |
| – Pressure Switch (110 PSI On / 145 PSI Off) |
| – Safety Valve (175 PSI) |
| – Drain Cock |
| – Leader Hose with Check Valve |
| – |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 30% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 19 Amps |
| – Ingress Protection Rating: IP54 |
| – Dimensions: 18.9″L x 5.9″W x 13.7″H |
| – Net Weight: 19.75 lbs. |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.59 |
10 |
0 |
45.0 |
10 |
| 10 |
1.49 |
12 |
1.0 |
40.2 |
13 |
| 20 |
1.33 |
13 |
2.0 |
32.1 |
14 |
| 30 |
1.11 |
14 |
3.0 |
29.0 |
15 |
| 40 |
1.04 |
15 |
4.0 |
26.4 |
16 |
| 50 |
0.99 |
15 |
5.0 |
24.2 |
16 |
| 60 |
0.92 |
16 |
6.0 |
22.0 |
17 |
| 70 |
0.87 |
16 |
7.0 |
21.0 |
19 |
| 80 |
0.81 |
17 |
8.0 |
19.4 |
18 |
| 90 |
0.76 |
17 |
9.0 |
17.5 |
17 |
| 100 |
0.74 |
19 |
10.0 |
15.3 |
17 |
| 110 |
0.71 |
19 |
|
|
|
| 120 |
0.67 |
18 |
|
|
|
| 130 |
0.62 |
17 |
|
|
|
| 140 |
0.57 |
17 |
|
|
|
| 150 |
0.51 |
17 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI |
1 min. 15 sec. (± 05 sec.) |
OE Reference: 20005
SKU: 530030002
2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)
£259.40inc 20% VAT
2.0 Gal. Tank Air Source Kit High Flow-150 (12V, 150 PSI Compressor)
OE Code : 20005
Application : Car and Truck
Fitment / Details : 12V Model, Capacity 2.0 Gallon, Max Working Pressure 150PSI, Suitable for Air Horns
Colour : Black, Silver
