Description

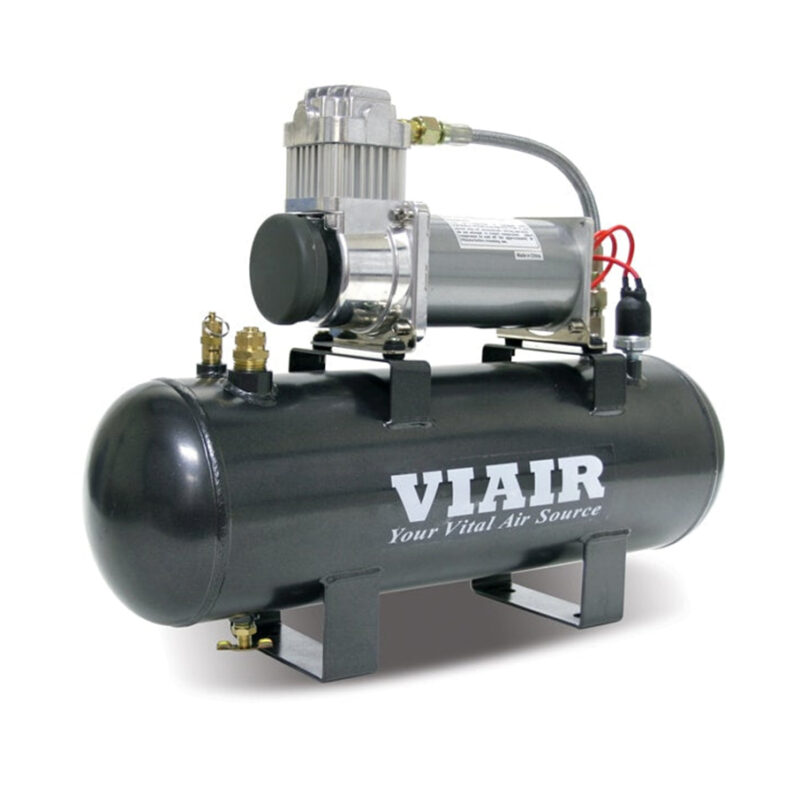

200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 PSI Compressor)
Air and Pneumatic Delivery Systems 200PSI Air Source Kits parts by OBA
Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8″ (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.
| FEATURES |
| – 380C Pewter Air Compressor |
| – Thermal Overload Protector |
| – 2.0 Gallon Air Tank |
| – Pressure Switch (165 PSI On / 200 PSI Off) |
| – Safety Valve (250 PSI) |
| – Drain Cock |
| – Leader Hose with Check Valve |
| – |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 19″L x 5.9″W x 14.2″H |
| – Net Weight: 21.05 lbs. |
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.58 |
12 |
0 |
44.7 |
12 |
| 10 |
1.45 |
13 |
1.0 |
38.1 |
13 |
| 20 |
1.22 |
14 |
2.0 |
33.3 |
15 |
| 30 |
1.17 |
15 |
3.0 |
30.6 |
16 |
| 40 |
1.09 |
17 |
4.0 |
29.1 |
17 |
| 50 |
1.06 |
17 |
5.0 |
27.1 |
18 |
| 60 |
1.02 |
17 |
6.0 |
25.3 |
19 |
| 70 |
0.97 |
18 |
7.0 |
24.0 |
20 |
| 80 |
0.92 |
18 |
8.0 |
22.4 |
21 |
| 90 |
0.88 |
19 |
9.0 |
21.0 |
23 |
| 100 |
0.85 |
20 |
10.0 |
19.5 |
21 |
| 110 |
0.81 |
21 |
11.0 |
18.2 |
20 |
| 120 |
0.78 |
22 |
12.0 |
16.7 |
19 |
| 130 |
0.74 |
23 |
13.0 |
15.2 |
19 |
| 140 |
0.71 |
21 |
14.0 |
13.5 |
18 |
| 150 |
0.67 |
20 |
|
|
|
| 160 |
0.64 |
20 |
|
|
|
| 170 |
0.60 |
19 |
|
|
|
| 180 |
0.57 |
19 |
|
|
|
| 190 |
0.53 |
19 |
|
|
|
| 200 |
0.49 |
18 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
5 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI |
1 min. 25 sec. (± 05 sec.) |
OE Reference: 20007
SKU: 530030003
200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 PSI Compressor)
$434.43
200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 PSI Compressor)
OE Code : 20007
Application : Car and Truck
Fitment / Details : 12V Model, Capacity 2.0 Gallon, Max Working Pressure 200PSI, Suitable for Air Horns
Colour : Black, Silver
Description
200 PSI 2.0 Gal. Tank Fast-Fill-200 Air Source Kit (12V, 200 PSI Compressor)
Air and Pneumatic Delivery Systems 200PSI Air Source Kits parts by OBA
Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8″ (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.
PERFORMANCE DATA
* Supply Voltage: 13.8 Volts
FILL RATES
OE Reference: 20007
SKU: 530030003
Additional information
20007
Car and Truck
12V Model, Capacity 2.0 Gallon, Max Working Pressure 200PSI, Suitable for Air Horns
Black, Silver
