200 PSI Ultra Duty Onboard Air System (12V, 200 PSI Compressor, 2.5 Gal Tank)
Air and Pneumatic Delivery Systems Ultra Duty OBA parts by OBA

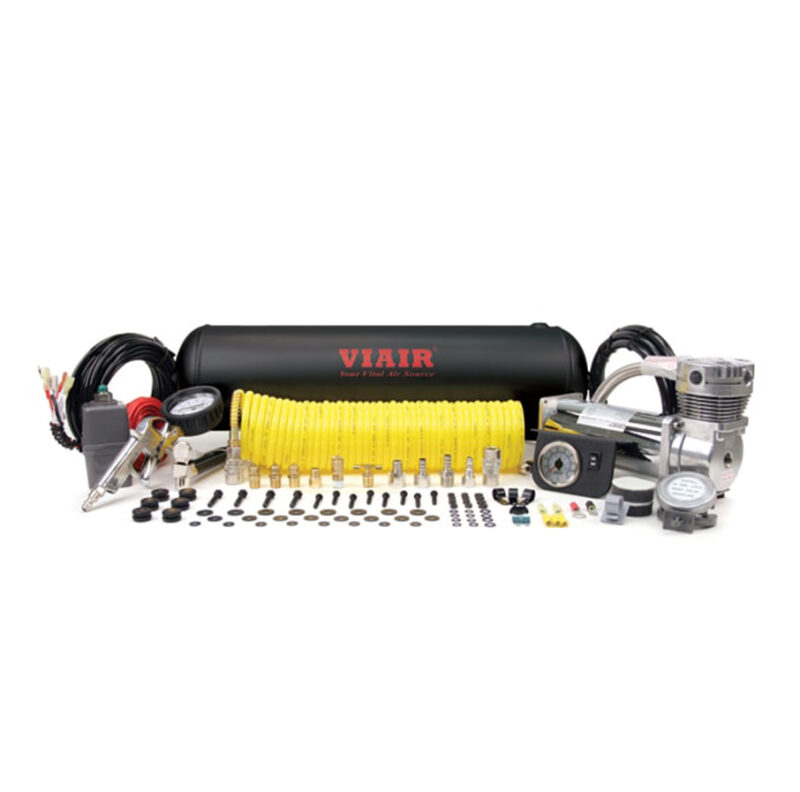

VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.
| FEATURES |
| – 2.5 Gallon 200 PSI VIAIR Air Tank |
– 480C Chrome VIAIR Air Compressor
w/Thermal Overload Protector |
| – Tire Inflation Gun with 200 PSI Gauge |
| – Dash Panel Gauge with ON/OFF Switch |
| – 30ft. Coil Hose with Quick Connects |
| – Pressure Switch (165 PSI on, 200 PSI off) |
| – Reducer: 1/8″ (F) to 1/4″ (M) |
| – Reducer: 3/8″ (F) to 1/4″ (M) |
| – 1/4″ Quick Connect Stud (F) |
| – 1/4″ Quick Connect Coupler (F) |
| – 1/4″ 250 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (3) 1/4″ Compression Fittings |
| – 20ft. 12-Gauge Wire with Inline Fuse Holder |
| – 4″ Strip of Continuous Grommet Material |
| – Accessory Airline |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 200 PSI |
| – Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included..
Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.86 |
10 |
0 |
52.7 |
10 |
| 10 |
1.75 |
12 |
1.0 |
47.5 |
13 |
| 20 |
1.59 |
14 |
2.0 |
43.2 |
15 |
| 30 |
1.52 |
15 |
3.0 |
40.7 |
16 |
| 40 |
1.45 |
16 |
4.0 |
38.1 |
18 |
| 50 |
1.41 |
17 |
5.0 |
35.3 |
18 |
| 60 |
1.33 |
18 |
6.0 |
32.6 |
19 |
| 70 |
1.26 |
18 |
7.0 |
30.0 |
20 |
| 80 |
1.20 |
19 |
8.0 |
27.0 |
22 |
| 90 |
1.13 |
19 |
9.0 |
25.0 |
22 |
| 100 |
1.07 |
20 |
10.0 |
22.3 |
21 |
| 110 |
0.99 |
21 |
11.0 |
20.1 |
21 |
| 120 |
0.93 |
23 |
12.0 |
18.3 |
21 |
| 130 |
0.88 |
22 |
13.0 |
16.0 |
20 |
| 140 |
0.82 |
22 |
14.0 |
14.0 |
19 |
| 150 |
0.75 |
21 |
|
|
|
| 160 |
0.71 |
21 |
|
|
|
| 170 |
0.67 |
21 |
|
|
|
| 180 |
0.61 |
21 |
|
|
|
| 190 |
0.55 |
20 |
|
|
|
| 200 |
0.51 |
19 |
|
|
|
FILL RATES
| 2.5 GALLON TANK |
FILL RATE |
| 0 to 200 PSI |
5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 30 sec. (± 05 sec.) |
| 35″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
6 min. 15 sec. (± 15 sec.) |
| 15 to 30 PSI |
3 min. 15 sec. (± 10 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
7 min. 00 sec. (± 15 sec.) |
| 15 to 30 PSI |
3 min. 40 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
OE Reference: 20001
SKU: 530010012
200 PSI Ultra Duty Onboard Air System (12V, 200 PSI Compressor, 2.5 Gal Tank)
$716.61
VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.
OE Code : 20001
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Capacity 2.5 Gallon, Inflates upto 37" Tyres, Max Working Pressure 150PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Colour : Black, Silver
Description
200 PSI Ultra Duty Onboard Air System (12V, 200 PSI Compressor, 2.5 Gal Tank)
Air and Pneumatic Delivery Systems Ultra Duty OBA parts by OBA
VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.
w/Thermal Overload Protector
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included..
Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
FILL RATES
* Supply Voltage: 13.8 Volts
OE Reference: 20001
SKU: 530010012
