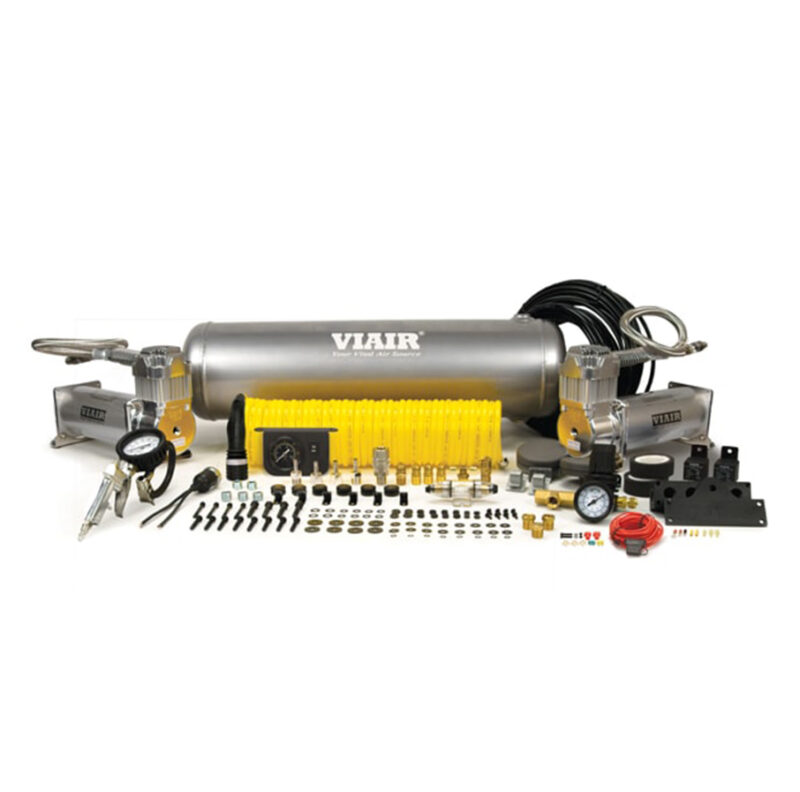

VIAIR’s Dual 450C Onboard Air System is a pre-packaged compressed air solution that provides two 450C, 100% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
Â
| FEATURES |
| – 2.5 Gallon 150 PSI VIAIR Air Tank |
| – (2) 450C VIAIR Compressors w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – 150 PSI Illuminated Dash Panel Gauge |
| – (2) 40-amp Relays |
| – Inline Fuse Holder |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 175 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (3) 1/4″ Compression Fittings |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| Â – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150Â PSI |
| – Max. Amp Draw: 44Â Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
Â
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.28 |
28 |
0 |
93.0 |
28 |
| 10 |
3.04 |
29 |
1.0 |
83.0 |
30 |
| 20 |
2.79 |
32 |
2.0 |
75.4 |
34 |
| 30 |
2.65 |
34 |
3.0 |
71.0 |
37 |
| 40 |
2.54 |
36 |
4.0 |
66.6 |
40 |
| 50 |
2.44 |
38 |
5.0 |
61.0 |
41 |
| 60 |
2.33 |
40 |
6.0 |
56.0 |
42 |
| 70 |
2.19 |
41 |
7.0 |
52.0 |
44 |
| 80 |
2.05 |
42 |
8.0 |
47.0 |
43 |
| 90 |
1.94 |
43 |
9.0 |
42.3 |
42 |
| 100 |
1.85 |
44 |
OE Reference: 20017
SKU: 530020006
