Description

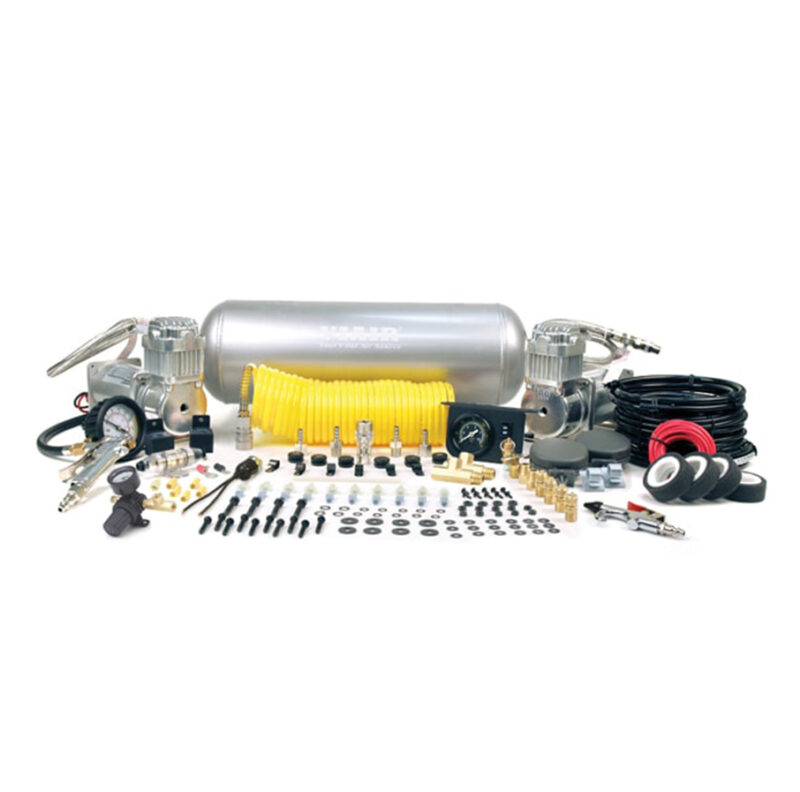

Super Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)
Air and Pneumatic Delivery Systems Super Duty OBA parts by OBA
VIAIR’s Super Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 325C, 33% duty cycle compressors, a2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
| – 2.0 Gallon VIAIR Air Tank |
| – (2) 325C VIAIR Compressors w/Thermal Overload Protectors |
| – (2) Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects |
| – Tire Inflation Gun with 160 PSI Gauge |
| – Dash Panel Gauge with ON/OFF Switch |
| – 0-220 PSI Pressure Regulator |
| – Blow Gun Air Tool |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – (2) 40-amp Relays |
| – (2) T-Fittings (1/4″ (M) x 1/4″ (F) x 1/8″ (F)) |
| – 1/4″ Quick Connect Stud (F) |
| – 1/4″ Quick Connect Coupler (F) |
| – 1/4″ 175 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (4) 1/4″ Compression Fittings |
| – 20ft. 12-Gauge Wire with Inline Fuse Holder |
| – 4″ Strip of Continuous Grommet Material |
| – Accessory Airline |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 38 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.21 |
22 |
0 |
91.0 |
22 |
| 10 |
2.81 |
24 |
1.0 |
76.0 |
28 |
| 20 |
2.54 |
27 |
2.0 |
68.0 |
31 |
| 30 |
2.40 |
30 |
3.0 |
64.0 |
33 |
| 40 |
2.30 |
32 |
4.0 |
59.0 |
35 |
| 50 |
2.19 |
33 |
5.0 |
55.0 |
36 |
| 60 |
2.07 |
34 |
6.0 |
53.0 |
36 |
| 70 |
1.98 |
35 |
7.0 |
51.0 |
36 |
| 80 |
1.91 |
36 |
8.0 |
47.5 |
37 |
| 90 |
1.85 |
36 |
9.0 |
45.0 |
37 |
| 100 |
1.78 |
36 |
10.0 |
42.0 |
37 |
| 110 |
1.73 |
37 |
|
|
|
| 120 |
1.66 |
38 |
|
|
|
| 130 |
1.59 |
37 |
|
|
|
| 140 |
1.52 |
37 |
|
|
|
| 150 |
1.45 |
37 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
1 min. 26 sec. (± 05 sec.) |
| 110 to 145 PSI |
25 sec. (± 03 sec.) |
| 33″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
3 min. 40 sec. (± 10 sec.) |
| 15 to 30 PSI |
1 min. 50 sec. (± 05 sec.) |
| 35″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
4 min. 36 sec. (± 10 sec.) |
| 15 to 30 PSI |
2 min. 20 sec. (± 05 sec.) |
OE Reference: 10008
SKU: 530010010
Super Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)
£644.75inc 20% VAT
VIAIR’s Super Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 325C, 33% duty cycle compressors, a2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.
OE Code : 10008
Application : Off Road and 4x4
Fitment / Details : 12V Model, Capacity 2.0 Gallon, Inflates upto 35" Tyres, Max Working Pressure 150PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Colour : Black, Silver
