X’treme Duty Onboard Air System (12V, 150 PSI Compressors, 2.0 Gal. Tank)
Air and Pneumatic Delivery Systems Xtreme Duty OBA parts by OBA

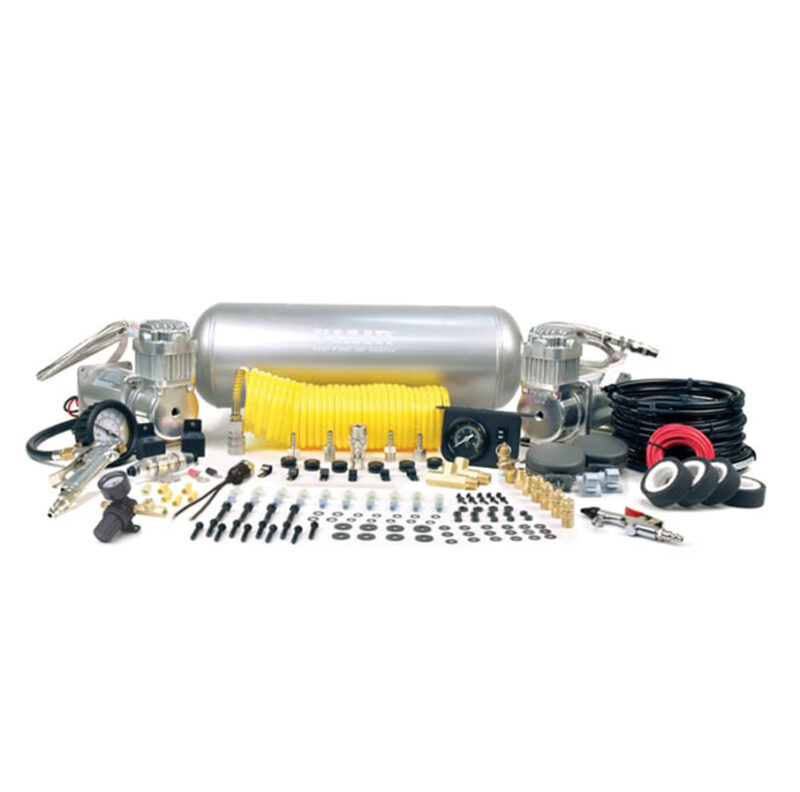

VIAIR’s X’treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two 350C, 100% duty cycle compressors, a2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
| – 2.0 Gallon VIAIR Air Tank |
| – (2) 350C VIAIR Compressors w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects |
| – Tire Inflation Gun with 160 PSI Gauge |
| – Dash Panel Gauge with ON/OFF Switch |
| – 0-220 PSI Pressure Regulator |
| – Blow Gun Air Tool |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – (2) 40-amp Relays |
| – (2) T-Fittings (1/4″ (M) x 1/4″ (F) x 1/8″ (F)) |
| – 1/4″ Quick Connect Stud (F) |
| – 1/4″ Quick Connect Coupler (F) |
| – 1/4″ 175 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (4) 1/4″ Compression Fittings |
| – 20ft. 12-Gauge Wire with Inline Fuse Holder |
| – 4″ Strip of Continuous Grommet Material |
| – Accessory Airline |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 37 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
2.68 |
23 |
0 |
76.0 |
23 |
| 10 |
2.30 |
26 |
1.0 |
64.0 |
28 |
| 20 |
2.22 |
29 |
2.0 |
60.0 |
31 |
| 30 |
2.12 |
31 |
3.0 |
55.0 |
34 |
| 40 |
1.98 |
33 |
4.0 |
51.5 |
35 |
| 50 |
1.87 |
34 |
5.0 |
48.0 |
36 |
| 60 |
1.80 |
35 |
6.0 |
45.5 |
37 |
| 70 |
1.73 |
35 |
7.0 |
43.0 |
37 |
| 80 |
1.66 |
36 |
8.0 |
40.0 |
37 |
| 90 |
1.56 |
36 |
9.0 |
36.0 |
37 |
| 100 |
1.52 |
37 |
10.0 |
31.5 |
37 |
| 110 |
1.45 |
37 |
|
|
|
| 120 |
1.38 |
37 |
|
|
|
| 130 |
1.27 |
37 |
|
|
|
| 140 |
1.17 |
37 |
|
|
|
| 150 |
1.06 |
37 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK |
FILL RATE |
| 0 to 145 PSI |
1 min. 40 sec. (± 05 sec.) |
| 110 to 145 PSI |
32 sec. (± 03 sec.) |
| 35″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
4 min. 40 sec. (± 10 sec.) |
| 15 to 30 PSI |
2 min. 20 sec. (± 05 sec.) |
| 37″ X 12.5″ |
FILL RATE |
| 0 to 30 PSI |
5 min. 00 sec. (± 15 sec.) |
| 15 to 30 PSI |
2 min. 40 sec. (± 10 sec.) |
OE Reference: 10009
SKU: 530010011
