Constant Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank)
Air and Pneumatic Delivery Systems Constant Duty OBA parts by OBA

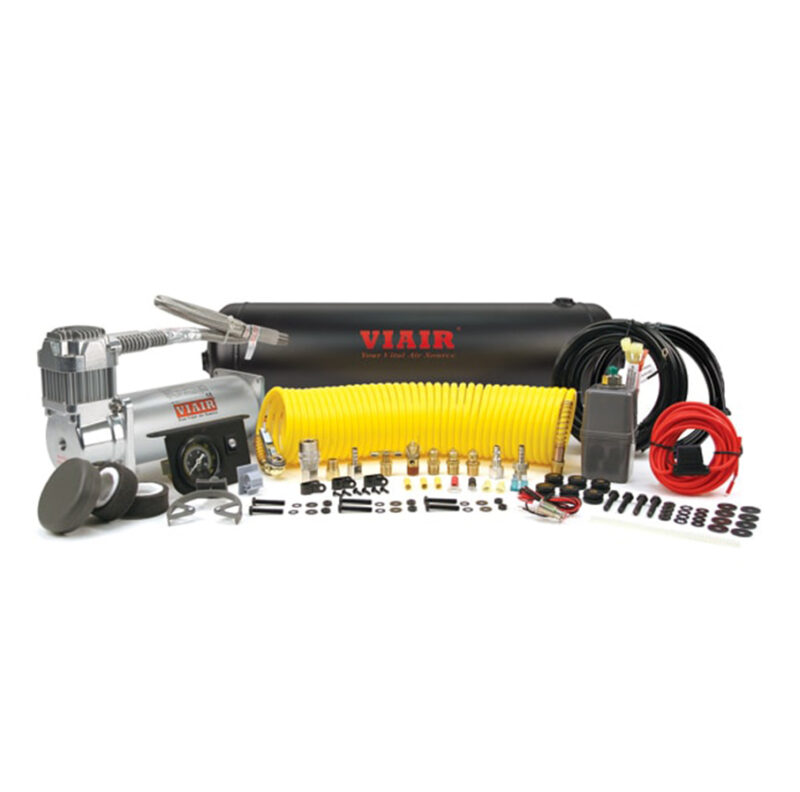

VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle compressors, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.
Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
Â
FEATURES |
– 2.5 Gallon VIAIR Air Tank |
– 450C VIAIR Compressor w/Thermal Overload Protector |
– 35ft. Coil Hose with Tire Chuck |
– Dash Panel Gauge with ON/OFF Switch |
– Pressure Switch with Relay (110 PSI on, 145 PSI off) |
– Reducer: 1/8″ (F) to 1/4″ (M) |
– 1/4″ Quick Connect Stud (F) |
– 1/4″ Quick Connect Coupler (F) |
– 1/4″ 175 PSI Safety Valve |
– 1/4″ Drain Cock |
– (3) 1/4″ Compression Fittings |
– 20ft. 12-Gauge Wire with Inline Fuse Holder |
– 4″ Strip of Continuous Grommet Material |
– Accessory Airline |
 – Electrical Connections |
SPECIFICATIONS |
– 12-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI |
– Max. Working Pressure: 150Â PSI |
– Max. Amp Draw: 23 Amps |
– Ingress Protection Rating: IP67 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
Â
PERFORMANCE DATA
PSI |
CFM |
A |
BAR |
LPM |
A |
0 |
1.80 |
12 |
0 |
51.0 |
12 |
10 |
1.75 |
14 |
1.0 |
47.6 |
15 |
20 |
1.60 |
16 |
2.0 |
43.3 |
17 |
30 |
1.52 |
17 |
3.0 |
38.2 |
18 |
40 |
1.39 |
18 |
4.0 |
34.0 |
19 |
50 |
1.27 |
19 |
5.0 |
30.5 |
20 |
60 |
1.18 |
19 |
6.0 |
28.1 |
21 |
70 |
1.09 |
20 |
7.0 |
26.4 |
22 |
80 |
1.04 |
20 |
8.0 |
25.0 |
23 |
90 |
0.97 |
21 |
9.0 |
23.0 |
22 |
100 |
0.94 |
22 |
10.0 |
21.0 |
21 |
110 |
0.90 |
23 |
 |
120 |
0.86 |
23 |
 |
130 |
0.81 |
22 |
 |
140 |
0.76 |
21 |
 |
150 |
0.72 |
20 |
* Supply Voltage: 13.8 Volts |
Â
FILL RATES
2.5 GALLON TANK |
FILL RATE |
0 to 145 PSI |
3 min. 02 sec. (± 10 sec.) |
110 to 145 PSI |
59 sec. (± 05 sec.) |
35″ X 12.5″ |
FILL RATE |
0 to 30 PSI |
6 min. 55 sec. (± 15 sec.) |
15 to 30 PSI |
3 min. 30 sec. (± 10 sec.) |
37″ X 12.5″ |
FILL RATE |
0 to 30 PSI |
7 min. 56 sec. (± 15 sec.) |
15 to 30 PSI |
4 min. 09 sec. (± 10 sec.) |
RV TIRES 275/80R22.5 |
FILL RATE |
80 to 90 PSI |
49 sec. (± 05 sec.) |
90 to 110 PSI |
5 min. 07 sec. (± 10 sec.) |
110 to 130 PSI |
6 min. 19 sec. (± 15 sec.) |
Â
OE Reference: 10007
SKU: 530010009
