Description
Dual Stealth Black 400C Onboard Air System (4.55 CFM, 150 PSI, 60 Amp, 12V, 2.0 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 400C OBA Range parts by OBA

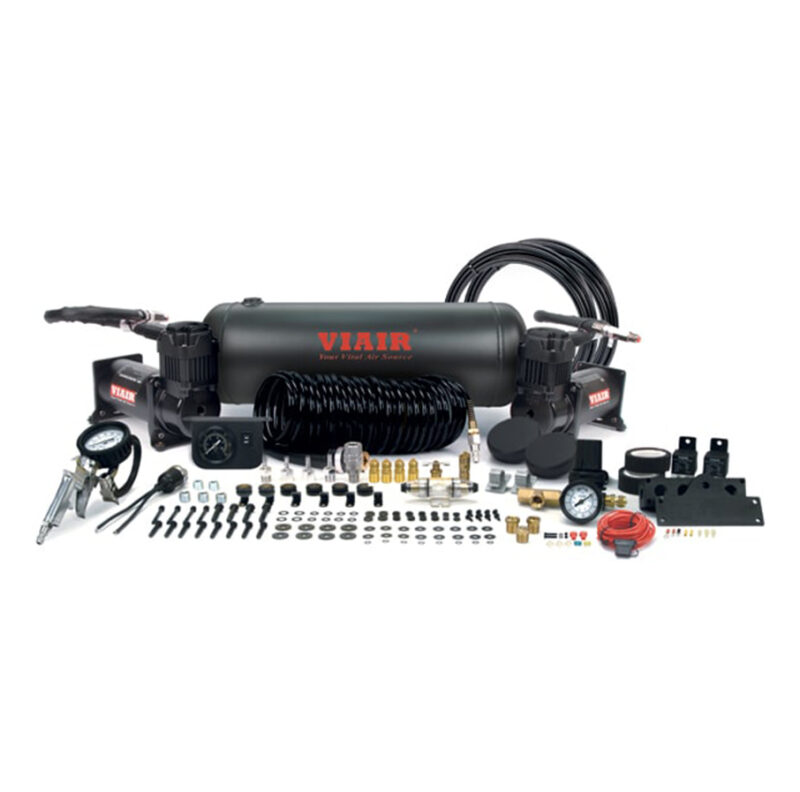

VIAIR’s Dual 400C Onboard Air System is a pre-packaged compressed air solution that provides two 400C, 33% duty cycle compressors, a 2.0 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
| – 2.0 Gallon 150 PSI VIAIR Air Tank |
– (2) 400C VIAIR (Chrome or Stealth Black) Compressors
w/Thermal Overload Protectors |
| – 30ft. Coil Hose with Quick Connects (20015) or |
| – 30ft. Black Sleeved Inside Braided Coil Hose (20016) |
| – Tire Inflation Gun with 200 PSI Gauge |
| – 0-220 PSI Pressure Regulator |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – 150 PSI Illuminated Dash Panel Gauge |
| – (2) 40-amp Relays |
| – Inline Fuse Holder |
| – 1/4″ Quick Connect Coupler (M) |
| – 1/4″ 175 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – (2) 1/8″ BSP to 1/4″ NPT |
| – (3) 1/4″ Compression Fittings |
| – 5 Pc. 1/4″ NPT Plugs Kit |
| – 6-Port Billet Manifold with Mounting Bracket (1/4″) |
| – (2) 20ft. 1/4″ Air Line Included |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 33% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 60 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
4.55 |
39 |
0 |
129.0 |
39 |
| 10 |
4.18 |
40 |
1.0 |
115.6 |
41 |
| 20 |
3.96 |
42 |
2.0 |
106.5 |
45 |
| 30 |
3.74 |
45 |
3.0 |
96.6 |
47 |
| 40 |
3.50 |
46 |
4.0 |
86.4 |
50 |
| 50 |
3.25 |
48 |
5.0 |
78.4 |
53 |
| 60 |
3.00 |
50 |
6.0 |
70.8 |
58 |
| 70 |
2.83 |
52 |
7.0 |
64.0 |
57 |
| 80 |
2.60 |
55 |
8.0 |
57.5 |
54 |
| 90 |
2.46 |
59 |
|
OE Reference: 20016
SKU: 530020005
Dual Stealth Black 400C Onboard Air System (4.55 CFM, 150 PSI, 60 Amp, 12V, 2.0 Gal. Tank)
$903.62
Dual Stealth Black 400C Onboard Air System (4.55 CFM, 150 PSI, 60 Amp, 12V, 2.0 Gal. Tank)
OE Code : 20016
Application : Car and Truck, Off Road and 4x4, RV and Motorhome
Fitment / Details : 12V Model, Capacity 2.0 Gallon, Inflates upto 40" Tyres, Max Working Pressure 150PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Colour : Black
Description
Dual Stealth Black 400C Onboard Air System (4.55 CFM, 150 PSI, 60 Amp, 12V, 2.0 Gal. Tank)
Air and Pneumatic Delivery Systems Dual 400C OBA Range parts by OBA
VIAIR’s Dual 400C Onboard Air System is a pre-packaged compressed air solution that provides two 400C, 33% duty cycle compressors, a 2.0 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
w/Thermal Overload Protectors
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
OE Reference: 20016
SKU: 530020005
Additional information
20016
Car and Truck, Off Road and 4×4, RV and Motorhome
12V Model, Capacity 2.0 Gallon, Inflates upto 40" Tyres, Max Working Pressure 150PSI, Suitable for Air Horns, Suitable For Air Lockers, Suitable for Air Tools
Black
