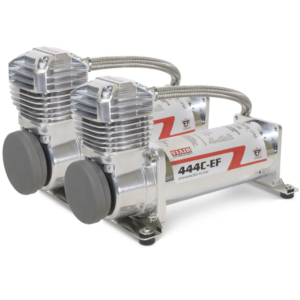

VIAIR’s 444C Dual Performance Value Pack air compressors feature a newly-developed head assembly, with a patent pending intercooler head, and is capable of a maximum 200 PSI with a 100% duty cycle to power an air suspension system or any other application you may have. The 444C Dual Performance Value Pack includes two 12-volt Chrome or Stealth Black VIAIR 444C air compressors, which are also equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.
Features:
– (2) 444C (Chrome or Stealth Black) Air Compressors
– Intercooler Head (Patents Pending)
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– (6) Airline Clips with Included Hardware
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Max. Amp Draw: 40 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit)
– Net Weight: 21.60 lbs.
| 2.5 Gallon Tank |
Fill Rate |
| 0 to 200 PSI |
2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI |
46 sec. (± 05 sec.) |
| 5.0 Gallon Tank |
Fill Rate |
| 0 to 200 PSI |
5 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 35 sec. (± 05 sec.) |
OE Reference: 44432-1
SKU: 510020009
