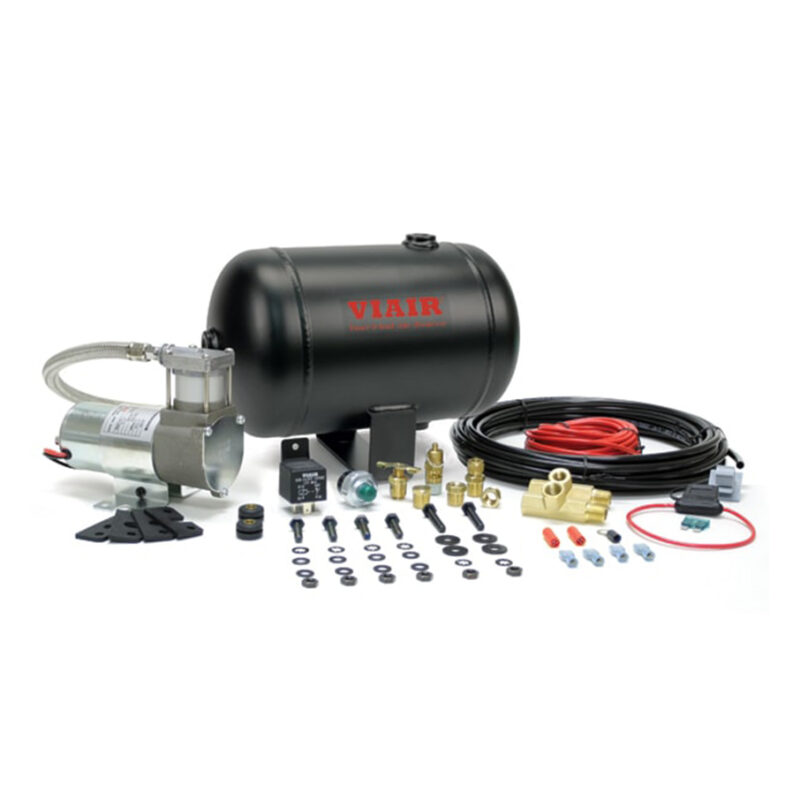

Ultra Light Duty Onboard Air System can be used to pressurize the included 1.0 gallon air tank for air horn use, air lockers, and a host of other light duty pneumatic needs. While not intended for tire inflation, this onboard air system provides a reliable air source in a smaller volume, and a cost effective package.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs.
Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
| FEATURES |
| – 1.0 Gallon VIAIR Air Tank |
| – 98C VIAIR Air Compressor |
| – Omega Bracket with Mounting Hardware |
| – Pressure Switch (85 PSI on, 105 PSI off) |
| – 40-amp Relay |
| – 145 PSI Safety Valve |
| – T-Fitting: 1/4″ (M) x 1/4″ (F) x 1/8″ (F) |
| – T-Fitting: 1/4″ (M) x 1/4″ (F) x 1/4″ (F) |
| – 1/4″ Drain Cock |
| – 1/4″ Compression Fitting |
| – 1/4″ Plug (M) |
| – (2) 1/4″ (M) NPT to 1/8″ (F) BSP |
| – 20ft. 16 Gauge Wire with Inline Fuse Holder |
| – Accessory Airline |
| – Electrical Connections |
| SPECIFICATIONS |
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 10% @ 100 PSI |
| – Max. Working Pressure: 105 PSI |
| – Max. Amp Draw: 12 Amps |
| – Ingress Protection Rating: IP54 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted.
Wiring harness NOT included.
PERFORMANCE DATA
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
1.53 |
7 |
0 |
43.5 |
7 |
| 10 |
1.00 |
9 |
1.0 |
28.0 |
9 |
| 20 |
0.95 |
10 |
2.0 |
25.5 |
11 |
| 30 |
0.90 |
11 |
3.0 |
22.7 |
11 |
| 40 |
0.83 |
11 |
4.0 |
20.7 |
12 |
| 50 |
0.77 |
12 |
5.0 |
18.3 |
12 |
| 60 |
0.72 |
12 |
6.0 |
16.3 |
12 |
| 70 |
0.65 |
12 |
7.0 |
13.7 |
12 |
| 80 |
0.60 |
12 |
8.0 |
11.7 |
12 |
| 90 |
0.54 |
12 |
9.0 |
10.0 |
11 |
| 100 |
0.48 |
12 |
|
|
|
* Supply Voltage: 13.8 Volts
FILL RATES
| 1.0 GALLON TANK |
FILL RATE |
| 0 to 105 PSI |
1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI |
30 sec. (± 05 sec.) |
OE Reference: 10000
SKU: 530010005
Overview
The Ultra-Light Duty system offers a compact way to store compressed air for occasional pneumatic demands. Its 98C compressor automatically replenishes the one-gallon tank between the specified switching pressures. It is particularly suitable for compatible air horns and small pneumatic accessories where sustained air consumption is not required. The 10% duty-cycle rating at 100 PSI makes cooling intervals an important part of planning the installation.
Technical specifications
| Manufacturer part number |
10000 |
| Compressor model |
98C |
| Supply voltage |
12V DC |
| Maximum working pressure |
105 PSI |
| Free airflow |
1.53 CFM at 0 PSI |
| Duty cycle |
10% at 100 PSI |
| Maximum current draw |
13 A |
| Air tank capacity |
1.0 US gallon |
| Pressure control |
85 PSI on / 105 PSI off |
| Compressor IP rating |
IP54 |
Airflow is quoted at 0 PSI; actual output changes with operating pressure. Duty-cycle ratings apply at the stated pressure. Follow VIAIR installation guidance for wiring, protection and mounting.
Installation and documentation
Confirm the supplied components and appropriate installation arrangement against the manufacturer instructions. VIAIR product information and documentation.
