What is this part called?

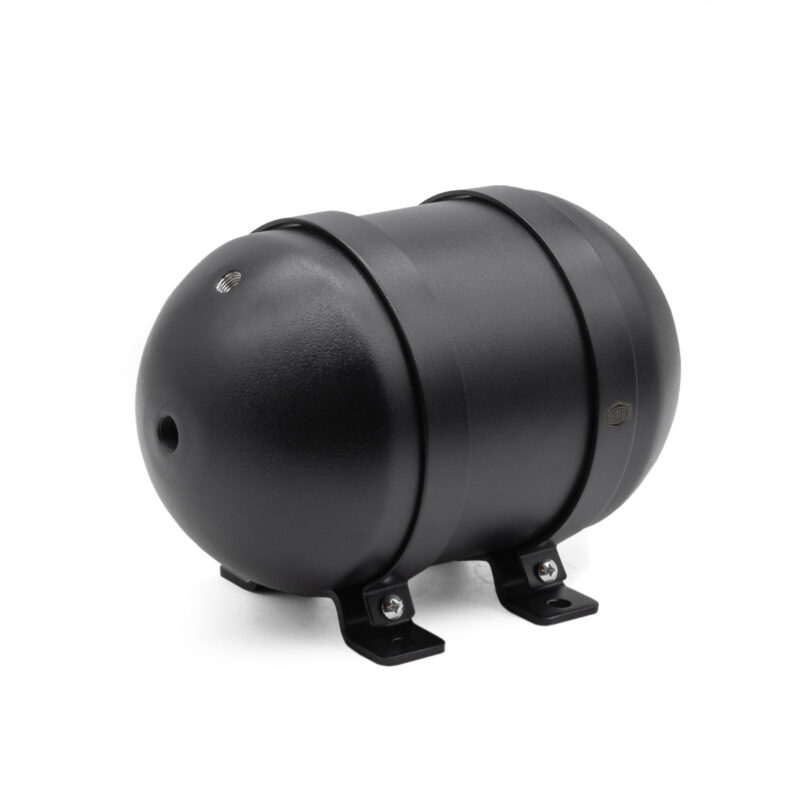

1.0 Gallon MOA Seamless Aluminium Stubby Satin Black Air Tank – 5 Port, 200 PSI
What does this part do?
This 1.0 gallon MOA seamless aluminium stubby air tank is designed for compact air suspension and onboard air installations, combining a short 168mm diameter body with a satin black finish.
The tank uses metal spun seamless construction with press formed threaded ports for a clean and durable air storage solution.
What are the key features?
- 1.0 gallon air capacity
- Compact stubby design
- Seamless aluminium construction
- Satin black finish
- 200 PSI rated working pressure
- 5 threaded NPT ports
- 3.5mm minimum wall thickness
- Press formed threaded ports
- Suitable for compact installations
- Supplied with two strap-style aluminium tank mounts
What are the tank dimensions?
- Capacity: 1.0 Gallon
- Length: 290mm
- Body Diameter: 168mm
- Height Including Mounting Legs: 190mm
- Weight: Approximately 2.5kg
- Material: Aluminium
- Finish: Satin Black
What ports does the tank have?
- 3 x 1/4″ NPT ports
- 2 x 3/8″ NPT ports
- Total ports: 5
What is included?
- 1 x 1.0 Gallon MOA seamless aluminium stubby satin black air tank
- 2 x Strap-style aluminium tank mounts
Please Note
Please check the available installation space and required port positions before purchasing. Suitable NPT fittings, compressors, valves, pressure switches and management components are available separately unless otherwise stated.
What is the SKU for this part?
SKU: 560010013
