What is this part called?

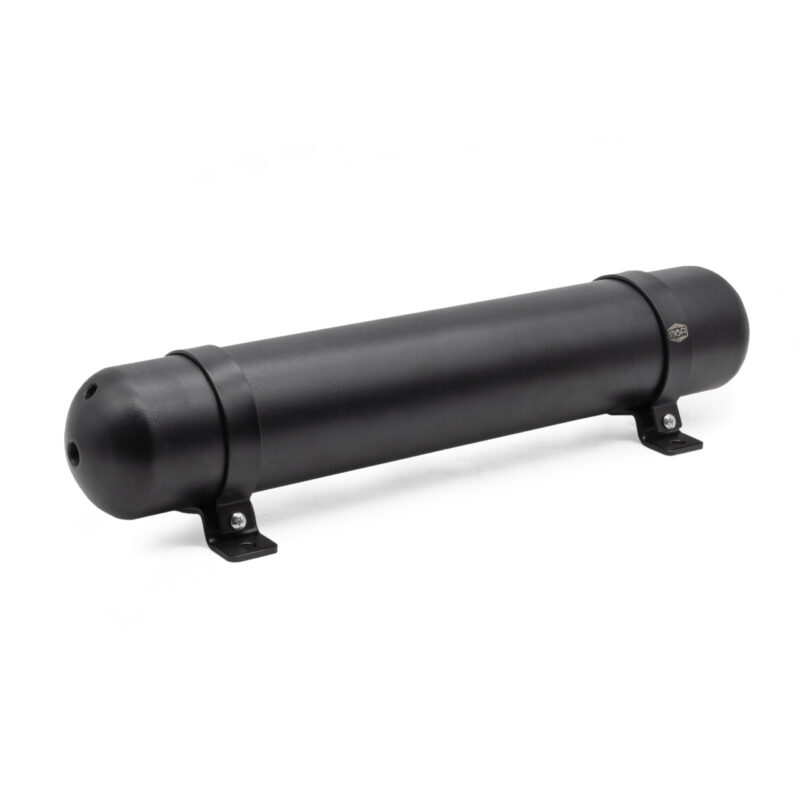

1.0 Gallon MOA Seamless Aluminium Skinny Satin Black Air Tank – 5 Port, 200 PSI
What does this part do?
This 1.0 gallon MOA seamless aluminium skinny air tank is designed for air suspension and onboard air installations where a narrow tank profile is required, combining a 100mm diameter body with a satin black finish.
What are the key features?
- 1.0 gallon air capacity
- Skinny 100mm diameter body
- Seamless aluminium construction
- Satin black finish
- 200 PSI rated working pressure
- 5 threaded NPT ports
- 3.5mm minimum wall thickness
- Metal spun seamless construction
- Press formed threaded ports
- Suitable for space-restricted installations
- Supplied with two strap-style aluminium tank mounts
What are the tank dimensions?
- Capacity: 1.0 Gallon
- Length: 720mm
- Body Diameter: 100mm
- Height Including Mounting Legs: 125mm
- Weight: Approximately 2.5kg
- Material: Aluminium
- Finish: Satin Black
What ports does the tank have?
- 3 x 1/4″ NPT ports
- 2 x 3/8″ NPT ports
- Total ports: 5
What is included?
- 1 x 1.0 Gallon MOA seamless aluminium skinny satin black air tank
- 2 x Strap-style aluminium tank mounts
Please Note
Please check the available installation space and required port positions before purchasing. Suitable NPT fittings, compressors, valves, pressure switches and management components are available separately unless otherwise stated.
What is the SKU for this part?
SKU: 560010015
